0-90° Tilt 30kg Welding Positioner with Control Box

Supply Ability : 500 units/month

Color : Customized

Model Number : BWJ-3

Rotaion Speed : 0.05-0.5rpm

Certification : CE

Tilting Angle : 0-90°

MOQ : 1

Delivery Time : 10-20 work days

Load Capacity : 30kg

Frequency : 50Hz / 60Hz

Payment Terms : D/A,L/C,D/P,T/T

Rotation Speed : Variable Speed

Price : 500-1000USD

Worktable Diameter : 200mm

Brand Name : LEMAR

Model NO. : BWJ-3

Place of Origin : WUXI

Voltage : 110V/220V

Packaging Details : 38.00cm * 37.00cm * 38.00cm

Contact Now

0-90° Tilt 30kg Welding Positioner with Control Box
This 30kg small welding positioner is compact auxiliary welding equipment designed for small pipes, flanges, elbows, round barrels, and small hardware girth welding. It features a worm gear self-locking tilting structure with 0°-90° flip angle and infinite variable rotating speed control. An optional welding torch mounting bracket enables fixed automatic circular welding. The independent control cabinet allows easy speed adjustment and stable operation, with a small footprint suitable for desktop placement. CE certified and widely used in maintenance workshops, hardware processing, pipeline manufacturing, and small pressure vessel production.
0-90° Tilt 30kg Welding Positioner with Control Box0-90° Tilt 30kg Welding Positioner with Control Box
Core Technical Parameters
Item Specification
Rated Horizontal Load 30kg
Max Vertical Tilt Load 15kg
Tilting Range 0°~90° Worm gear self-locking
Rotation Speed 0.5-6rpm stepless speed regulation
Control Mode Knob speed control + foot pedal optional
Worktable Diameter 280mm
Optional Parts 3-jaw chuck, welding torch holder, foot switch
Input Voltage 220V single phase / 380V customized
Motor Power 90W
Certification CE

0-90° Tilt 30kg Welding Positioner with Control Box0-90° Tilt 30kg Welding Positioner with Control Box

Product Highlights
Worm Gear Self-locking Tilt Mechanism
Equipped with worm gear reducer for tilting adjustment. The workpiece can be securely locked at any tilt angle without slipping during welding operations, greatly enhancing operational safety and welding stability.

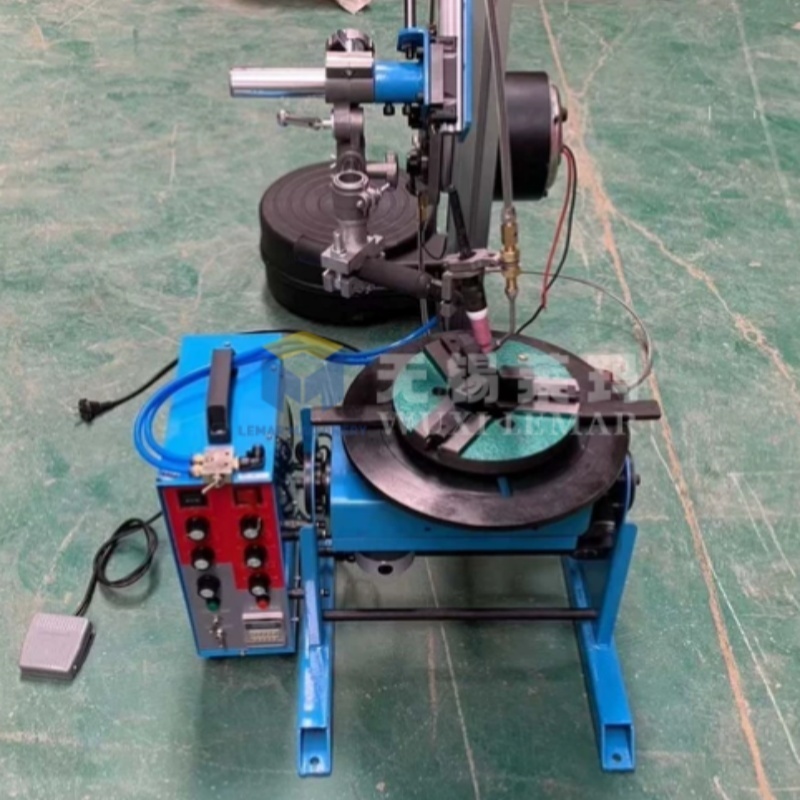

Removable Custom Welding Torch Stand
A detachable torch bracket can be mounted on the positioner frame to fix the welding torch in place. It supports automatic circular seam welding with minimal manual intervention, effectively cutting labor expenditure for repetitive welding work.
Independent Digital Control Box
The separated control cabinet features a digital speed display for intuitive speed adjustment. It isolates the main control components from welding spatter to prevent circuit burnout and extend the service life of electrical parts.
Compact Bench-top Integrated Frame
Light-duty integrated frame design allows direct placement on workbenches. It is easy to move and suitable for outdoor field maintenance and emergency repair welding tasks.
Diversified Optional Accessories

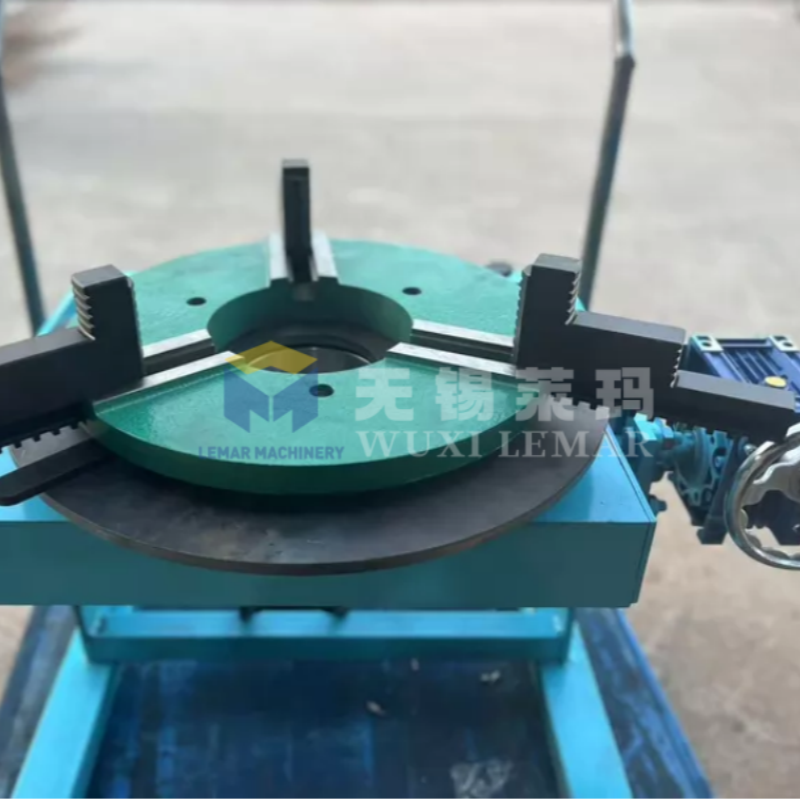

Compatible with self-centering 3-jaw chuck for rapid pipe clamping and foot pedal switch for hands-free welding control to streamline operation workflows.
Main Application Fields
  • Automated circumferential welding for pipeline flanges and short pipes
  • Surfacing and repair welding for pipe elbows, end caps and small tank bodies
  • Positioning welding and overlay repair for mechanical shaft parts
  • Field maintenance welding for engineering equipment and mechanical parts
  • Small-batch customized production of rotary welded structural parts

0-90° Tilt 30kg Welding Positioner with Control Box0-90° Tilt 30kg Welding Positioner with Control Box

Complete Supporting Solution
  • Welding turning rolls for long cylindrical workpiece circumferential welding
  • MIG/TIG welding power source matched for circular seam forming welding
  • 3D welding fixture platform for pre-assembly positioning of workpieces
  • Automatic wire feeder for continuous filling welding construction
  • Magnetic angle grinder for post-weld weld seam polishing treatment

0-90° Tilt 30kg Welding Positioner with Control Box0-90° Tilt 30kg Welding Positioner with Control Box

Logistics Plan & After-sales Service Commitment
  • Export Packaging: Fumigated solid wooden case + internal waterproof membrane and shockproof filling
  • Production Cycle: 7-12 working days after receiving the deposit
  • Available Trade Terms: FOB Wuxi, FOB Shanghai, CIF destination port, DDP door-to-door delivery
  • After-sales Policy: 12-month full machine warranty, lifelong one-to-one technical guidance and affordable spare parts supply
Common Pre-sales Consultation
Q1: Can the welding torch bracket be installed after delivery?
A1: The torch bracket is a detachable optional accessory. We can finish installation before shipment or deliver it separately for your later assembly.
Q2: What is the load difference between horizontal placement and inclined tilting?
A2: Rated horizontal load is 30kg, maximum safe tilting load is 15kg. Overload operation is forbidden to protect the reducer from damage.
Q3: Can the equipment working voltage be customized according to local power supply?
A3: Custom 110V/220V/380V single-phase & three-phase voltage is available to meet power standards of different countries.
Q4: Is the foot pedal switch included in the standard configuration?
A4: Foot pedal is an optional component, you can select to add it when placing the formal order.
Q5: What is the warranty coverage for core components such as drive motor?
A5: Motor and reducer enjoy a 12-month warranty. We provide free replacement spare parts for failures caused by product quality problems.
Looking for compact, cost-effective small positioning equipment to improve circular welding efficiency?
Our mini welding turntables are widely recognized by repair workshops, metal processing factories and pipeline manufacturers around the world. We provide free technical parameter sorting, official operation manuals and long-term quality after-sales service.
Submit your demand inquiry now, our professional sales team will provide factory direct quotation and personalized accessory matching plan for you.
