D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit

Model Number : D16

Vertical Perpendicularity : ≤0.05 mm / 200 mm

Payment Terms : D/A,L/C,D/P,T/T

Hole Machining : 5-sided drilled & reamed holes

Surface Treatment : Ion Nitriding

Price : 500-1500 USD

Flatness : Standard ≤0.1mm/1000mm; High Precision ≤0.05mm/1000mm

Hole Tolerance : H7, hole position tolerance ±0.05mm

MOQ : 1 PCS

Delivery Time : 15-25 work days

Side Plate Height : 100mm/150mm

Support Leg Adjustment Range : ±50 mm (leveling)

Supply Ability : 500 units/month

System Standard : D16 (Φ16mm hole, 50×50mm grid pitch)

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200mm

Brand Name : WUXI LEMAR

Nitriding Layer Depth : 0.10 mm – 0.25 mm

Contact Now

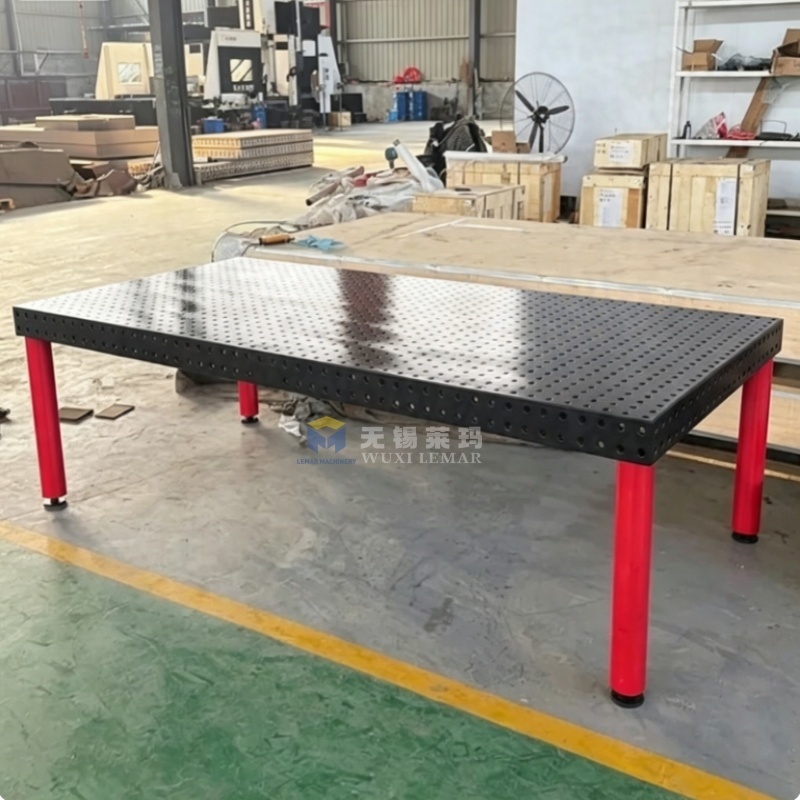

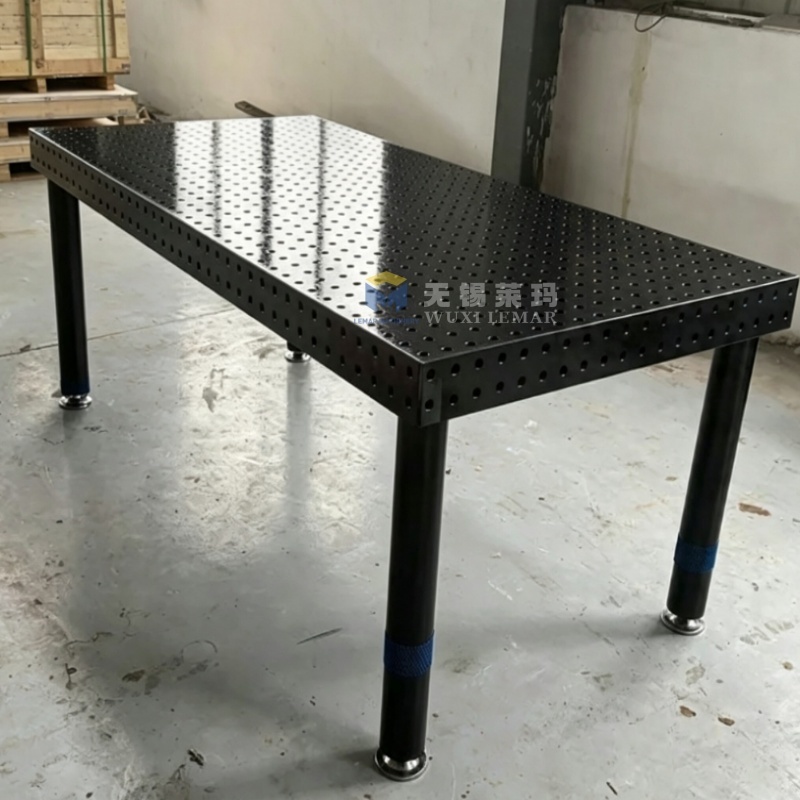

D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit
D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit

The D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit provides a ready-to-use 3D flexible welding solution. Featuring standard D16 (Φ16mm, 50×50mm grid) five-sided hole pattern, nitrided anti-spatter tabletop and full set modular clamping accessories, it enables fast fixture reconfiguration. Reduce jig manufacturing costs, cut setup time and guarantee consistent welding precision for light-to-medium fabrication projects.

D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit
D16 Fabrication Welding Table Size Chart
Table Dimension (L × W) Table Side Height Available Material Options
1000 × 500 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
1000 × 1000 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
1200 × 800 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
1500 × 1000 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
2000 × 1000 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
2400 × 1200 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
3000 × 1500 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
3000 × 2000 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
4000 × 2000 mm 100 mm / 150 mm Q355 Steel / HT300 Cast Iron
Custom Size Upon Request Q355 Steel (Cast Iron Custom Limited)
Working Principle and Advantages

Traditional Welding: Relies on squares and weights for temporary fixation; each fixture is individually manufactured, resulting in poor precision and time-consuming changeovers.

D16 3D Welding Table Advantages:

  • Modular and universal: One set of fixtures can produce dozens of different workpieces without the need for individual custom fixtures
  • 3D multi-angle clamping: Simultaneous positioning in the front, side, and height directions ensures the squareness and dimensional stability of the frame
  • High repeatability: Strong consistency in batch production reduces post-weld correction and rework
  • Rapid changeover: New products only require rearranging the fixture positions, and production can begin within hours
Stress, Load-Bearing Capacity and Service Limits
D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit
  • Uniformly distributed load rating: 2 tons/m²
  • Avoid heavy, concentrated point loads: Such as striking a single spot with a sledgehammer or placing heavy workpieces on a single spot for extended periods; this can cause localized surface indentation and permanent loss of flatness
  • Lateral clamping force: Relies on the rigid fit between the fixture and the welding table; not suitable for spot welding or forging operations involving extreme impact forces
  • Temperature limits: Not suitable for prolonged, continuous localized heating above 300°C, as this can damage the nitrided layer and accelerate deformation
Key Points for Automated Welding Adaptation
  • The D16 tabletop features a five-sided hole pattern, facilitating multi-angle tool access (from the sides, top, and bottom) for the robot
  • The tabletop can be mounted directly onto robot bases, positioners, or workpiece tilting fixtures
  • It can be paired with pneumatic quick-action clamps and sensor-based positioning to implement semi-automated solutions
  • Compared to the D28 system welding table: The D16 features a 50mm grid spacing, offering superior space utilization for small workpieces and compact robotic cells
  • Limitation: The maximum clamping force for massive, heavy components is lower than that of the D28 system welding table

If you are looking for a reliable D16 Fabrication Welding Table with 3D Clamps and Positioning Pins Kit to boost your workshop productivity, feel free to send us your requirements.

We support customized dimensions, different fixture package combinations and precision grades.

Get in touch now to receive the latest quotation and detailed technical specification sheet.
