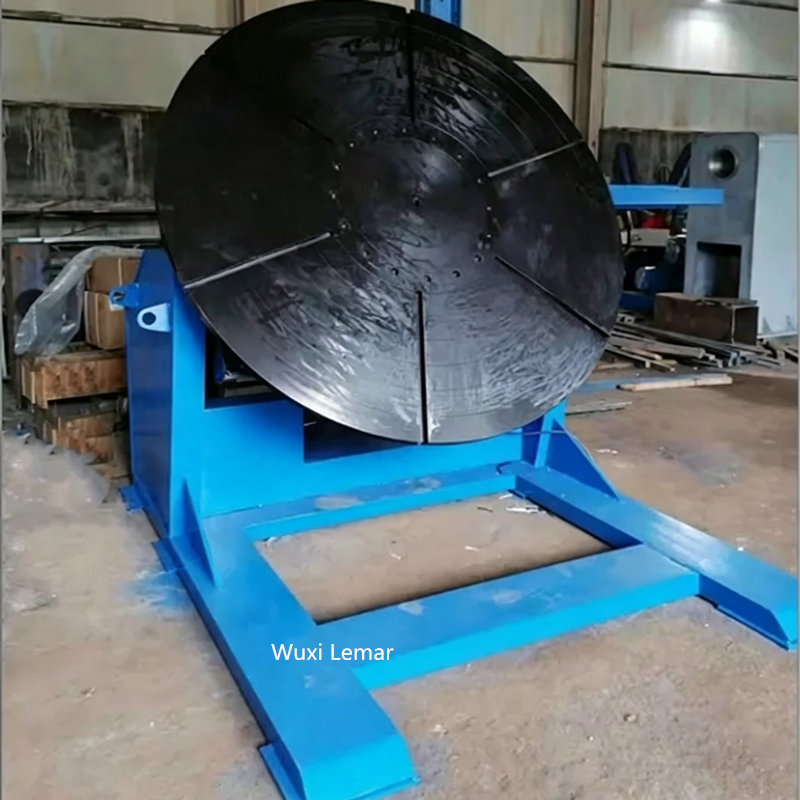

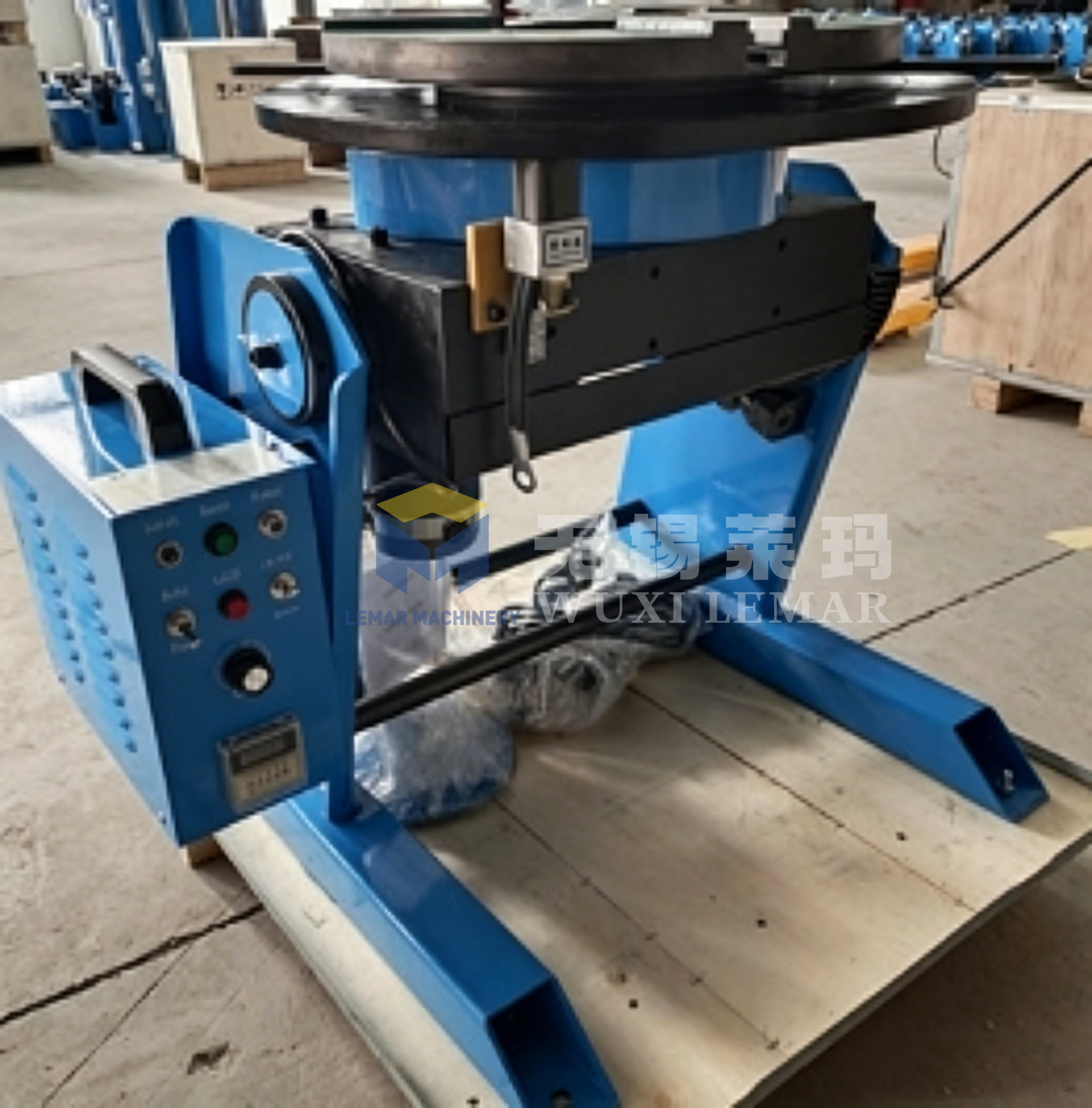

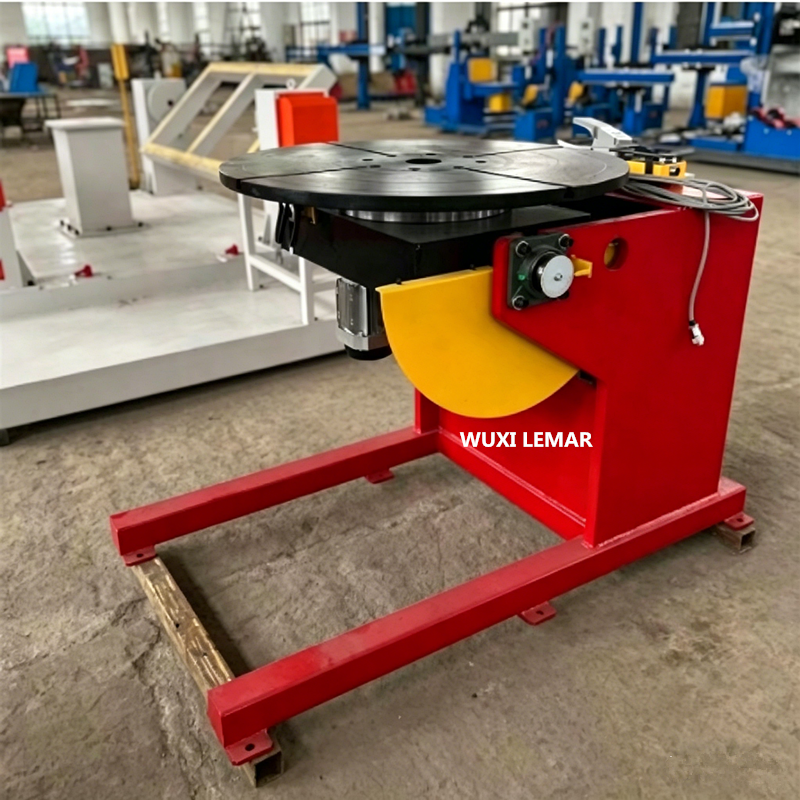

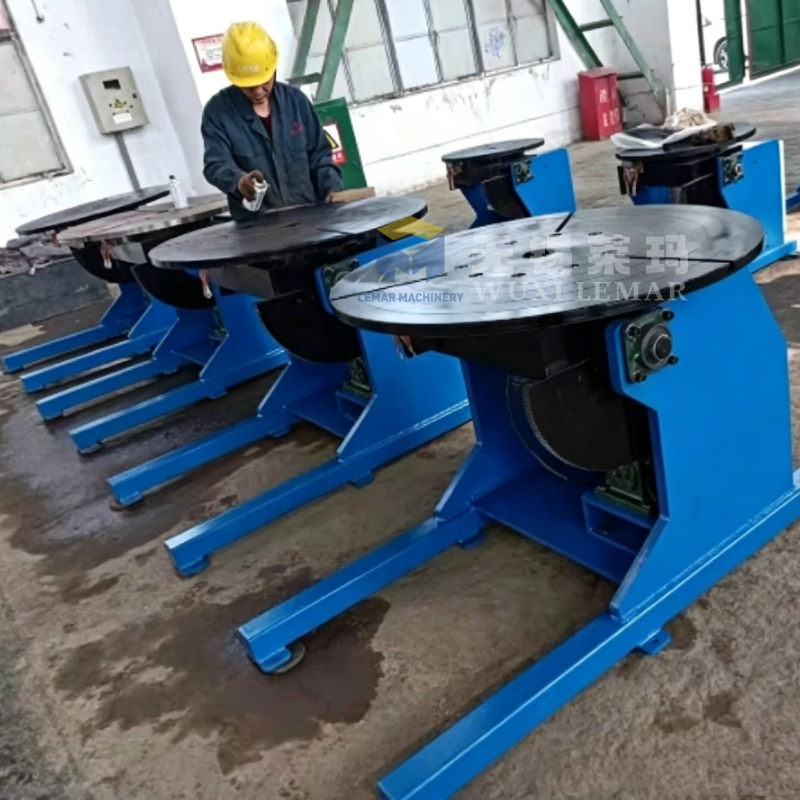

1 Ton Welding Positioner for Pipe, Flange & Small Vessel Circumferential Welding

This 1-ton welding positioner is heavy-duty rotary welding auxiliary equipment, designed for medium circular workpieces. It tilts and rotates workpieces continuously to achieve ideal welding posture for circumferential seams. Widely adopted in pressure vessel workshops, pipe fitting factories, metal fabrication and engineering machinery manufacturing. It effectively reduces welding labor intensity and guarantees uniform welding quality.

• Rated horizontal load: 1000kg, vertical load: 500kg
• Worm & worm gear driving structure, self-locking after angle adjustment, safe and reliable
• 0-10rpm stepless adjustable rotating speed, stable rotation, low vibration
• Large central through hole, suitable for long pipe penetration welding
• Large slotted rotary table, flexible for clamping fixtures and workpieces
• 0-90° manual tilting angle, meet multi-angle welding requirements
• Optional self-centering welding chuck, torch holder, foot switch and remote controller
• Robust thickened steel frame, durable for long-time continuous workshop operation

Customers can select matching accessories according to actual production demands:

• Self-centering welding chuck for quick clamping of round workpieces
• Welding torch stand to realize automatic circular welding
• Foot pedal switch for hands-free operation
• Wireless remote controller for convenient on-site operation
• Variable frequency control system for more stable rotation
• Custom widened rotary table, customized hole layout

Suitable for circumferential seam welding of workpieces as below:

• Pipe fittings, flanges and pipe spools
• Small stainless steel pressure vessels & cylinders
• Elbows, tank heads and rotary hardware parts
• Engineering mechanical circular components
• Boiler and pipeline accessory workpieces
