300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding

Name: 300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Brand: LEMAR
Price: 500 USD

China 300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding wholesale

Supply Ability : 500 units/month

Max Loading Weight : 300kg(Can Customized)

Model Number : BWJ-3

Rotaion Speed : 0.1-1rpm

Payment Terms : D/A,L/C,D/P,T/T

Control Mode : Normal or CNC

Price : 500-1000USD

Function : Pipe Flange Welding Turning Table

Certification : CE

Max Eccentricity Distance : 150mm

MOQ : 1

Delivery Time : 10-20 work days

Voltage : 110V/220V

Turning Table Rotation Speed : 0.1-1 Rpm

Brand Name : LEMAR

Model NO. : BWJ-03

Place of Origin : WUXI

Tilting Angle : 0-135°

Packaging Details : 73.00cm * 76.00cm * 80.00cm

Contact Now

300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding

Product Overview

This 300KG light-duty welding positioner is compact mini welding auxiliary equipment, designed for tiny stainless steel workpieces, pipe fittings, sanitary accessories and small pressure vessel nozzles.
It realizes full 360° horizontal rotation and 0-90° hydraulic tilting, turning workpieces into flat welding position easily to boost weld quality and reduce labor fatigue.
Small overall size occupies little workshop space, perfect for small fabrication shops, stainless steel processing studios and food machinery component manufacturers.
Stepless frequency conversion speed control delivers smooth low-speed rotation without vibration for thin plate welding.

Technical Specifications

Item	Specification
Model	HK-0.3T
Rated Loading Capacity	300kg
Worktable Diameter	600mm
Horizontal Rotation Range	0-360° continuous rotation
Tilting Angle	0-90° hydraulic self-locking tilt
Rotation Speed	0.1-1 r/min, frequency stepless adjustment
Standard Power Supply	3-phase 380V
Custom Power Supply	Single-phase 220V customizable

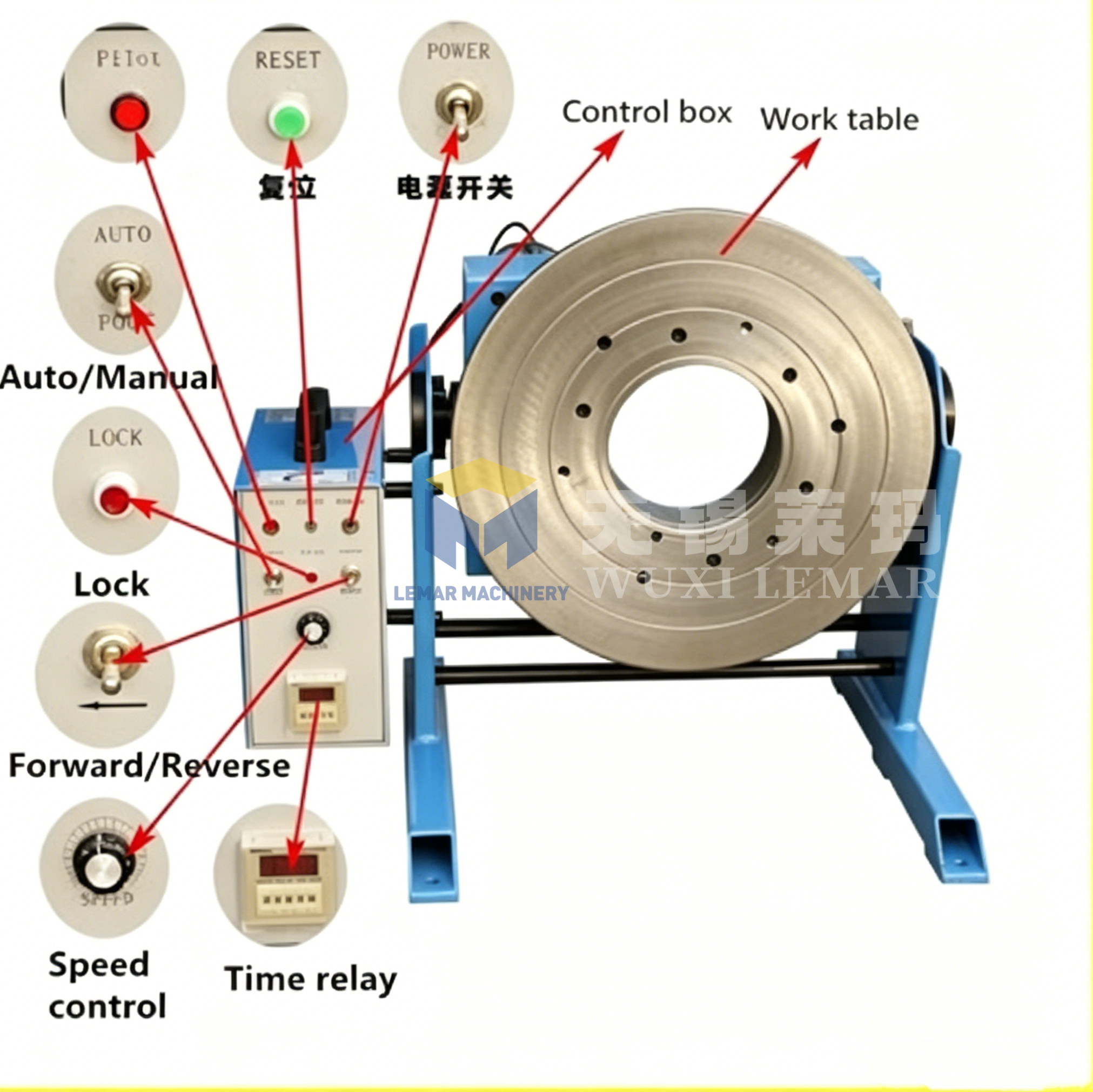

Standard Control Device	Hand-held control box
Optional Accessory	Foot pedal switch
Continuous Working Capacity	24-hour non-stop operation

Application Scope

Sanitary stainless pipe fittings, elbows, flanges and joints
Small tank nozzles, miniature reaction vessel accessories
Food & beverage machinery small metal components
Hardware parts, valve bodies and light engineering workpieces
Mini water tank and small stainless cylinder welding
Popular among small workshops in Spain, Portugal, Southeast Asia

Factory Advantages

Professional welding equipment manufacturer with independent machining and assembly workshop
All 300kg positioners pass strict load test and CE safety certification
Customization available for table size, special voltage and dedicated fixtures
Direct factory selling without middlemen, cost-effective price
Provide remote online technical guidance and long-term after-sales support

Matching Supporting Equipment

Mini longitudinal seam welder: matched to produce small stainless steel cylinders
Small welding rotator: cooperate for girth welding of tiny storage tanks
Light torch holder: fixed on turntable for automatic circular welding
Portable welding fume extractor: clean smoke for small enclosed workshops

Frequently Asked Questions

Q1: Can it run with seriously unbalanced workpieces?

A: Keep workpiece gravity near table center; heavy unbalance will cause violent shaking.

Q2: Can I install custom clamping fixtures on the turntable?

A: Yes, the table reserves multi-group standard mounting holes for fixture installation.

Q3: Is foot pedal included in standard package?

A: Foot pedal is optional extra; standard configuration only has hand control box.

Q4: Will the tilt angle slip during long welding work?

A: Hydraulic self-locking system keeps fixed angle without slipping.

Q5: Do I need anchor bolts to fix the machine on ground?

A: No anchor bolts required for flat and solid ground surface.

Product Tags:

300kg mini welding positioner

small rotary tilt table

pipe sanitary fitting welder

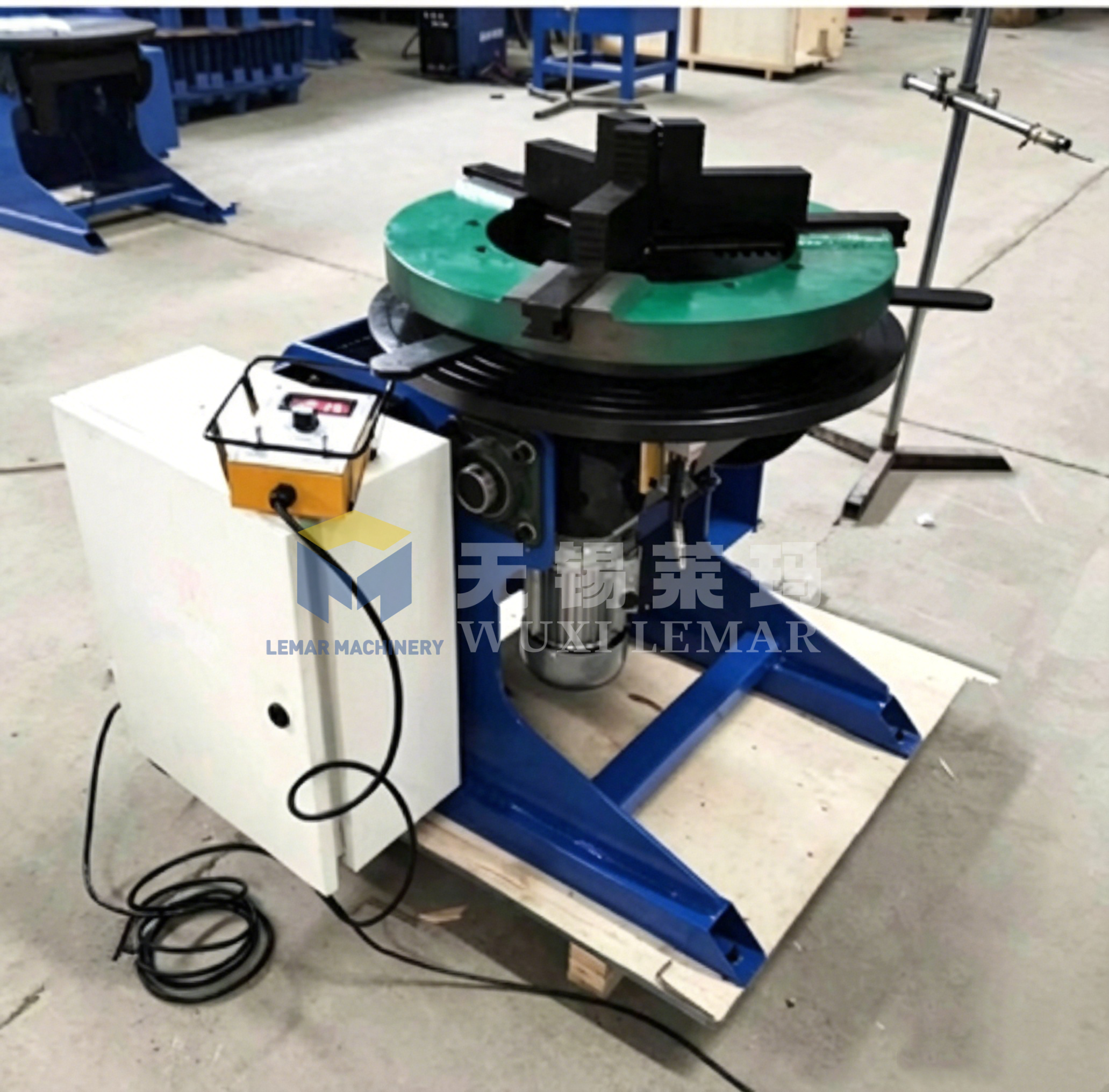

300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding Images
