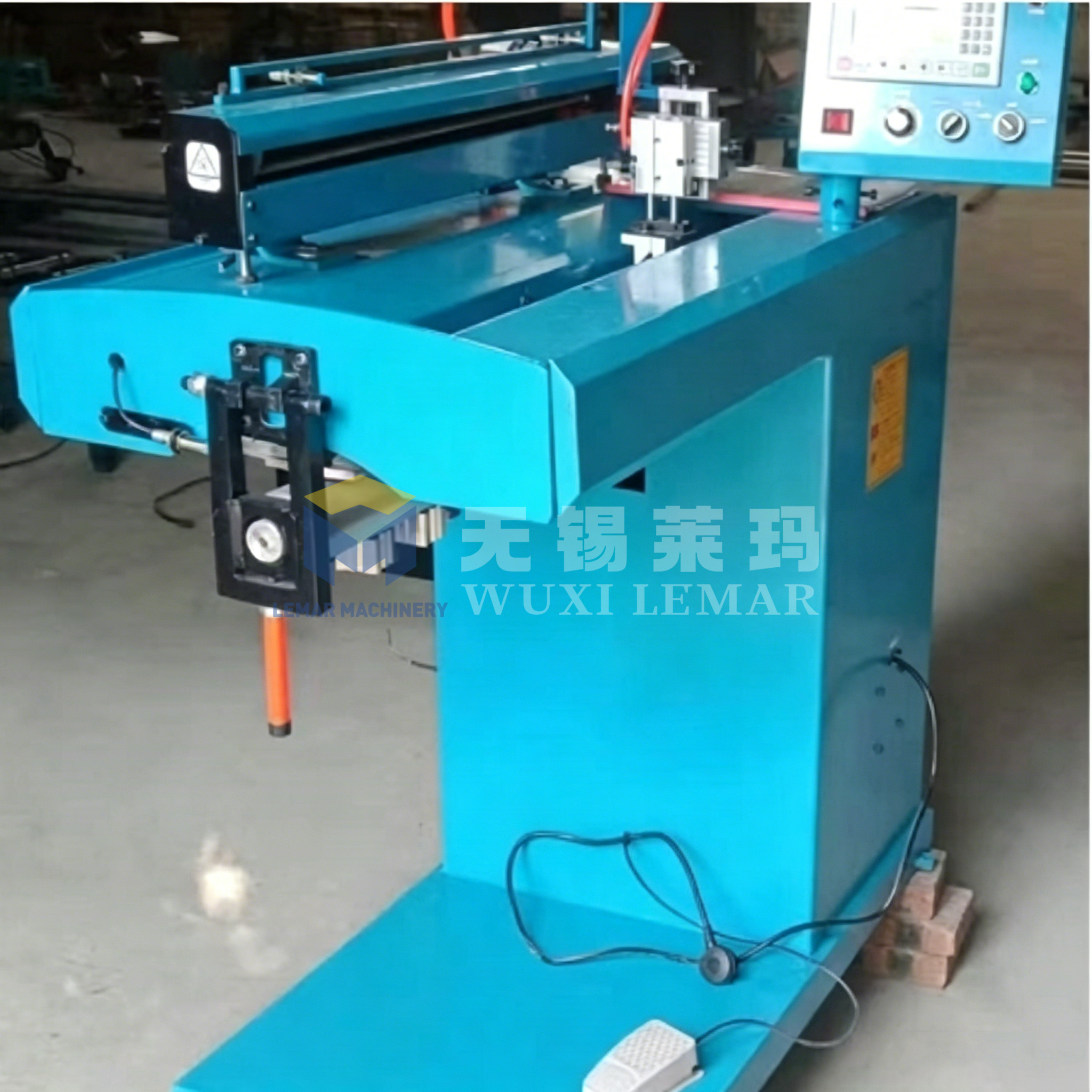

2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank

  • 1
  • 2
  • 3

Supply Ability : 500 units/month

Control System : PLC Touch Screen CNC Intelligent Control

Model Number : Zfh2000

Control : Automatic

MOQ : 1

Delivery Time : 10-20 work days

Max Effective Welding Length : High Frequency Max Effective Welding Length 2000mm

Processing Thickness : 0.4-5mm Thick Metal Plate

Payment Terms : L/C,D/A,D/P,T/T,

Welding Source : TIG / Plasma / MIG Three Modes Optional

Price : 500-1000USD

Machine Type : Longitudinal Straight Seam Welding Machine

Certification : CE

Cooling Way : Air Cooling

Brand Name : LEMAR

Model NO. : ZFH2000

Place of Origin : WUXI

Frequency Range : High Frequency

Packaging Details : 100.00cm * 80.00cm * 120.00cm

Contact Now

2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank
2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank
Product Overview

ZF2000 longitudinal straight seam welding machine is our heavy-duty model with 2000mm full effective welding length, specially developed for large, thick-wall cylindrical workpieces like pressure vessels and chemical storage tanks.

Built with reinforced thick steel beam for stable long-stroke operation, matched with full 2000mm water cooling copper fixture to eliminate thick plate thermal deformation.

Equipped with PLC automatic control and independent back argon protection, compatible with multi-type welding power sources to deliver high-quality welds for heavy industrial production.

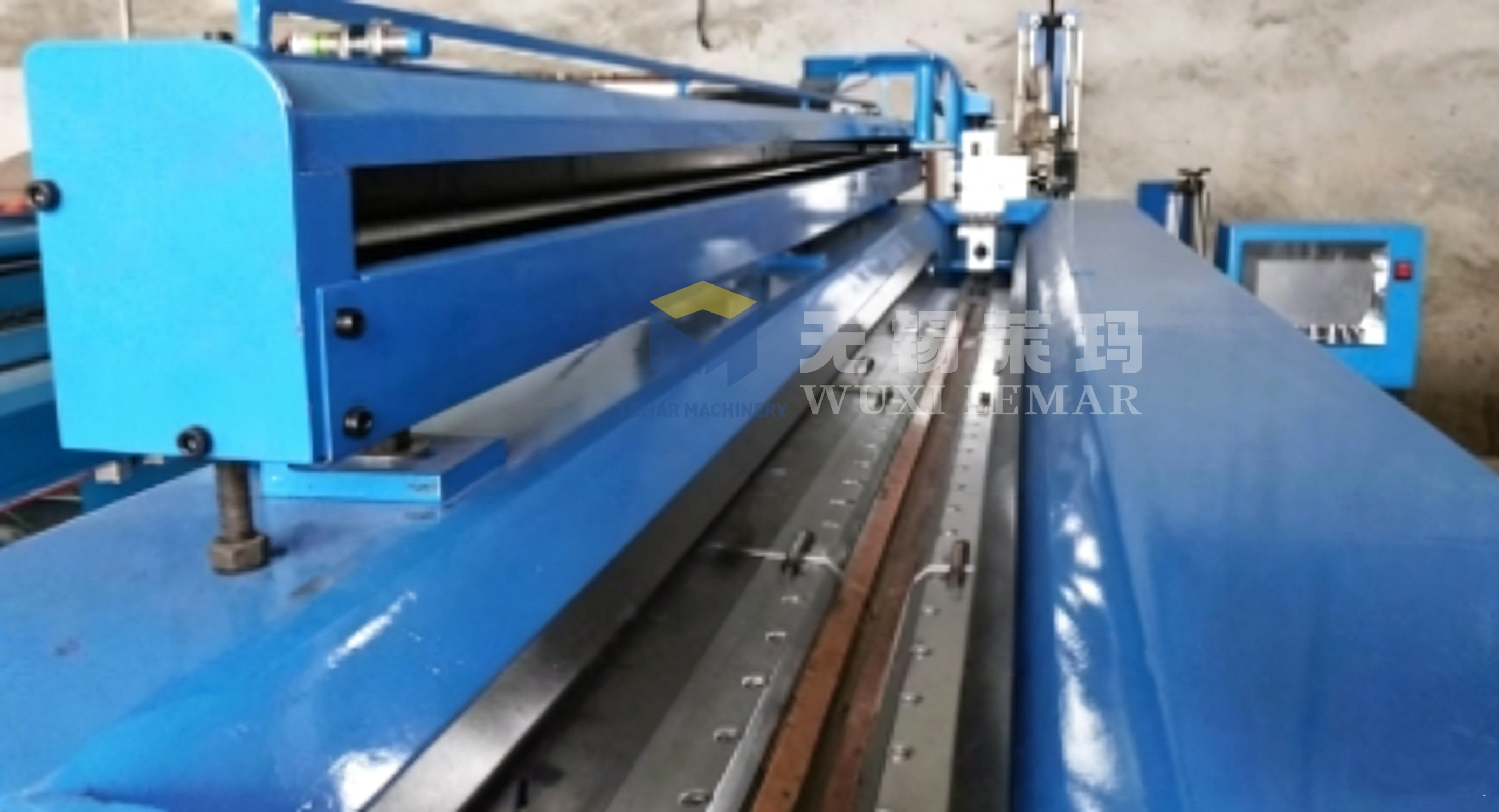

2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank 2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank
Standard Machine Configuration
  • Reinforced thick cast steel welding beam
  • 2000mm full-length water cooling piano-key clamping system
  • High precision linear guide + high torque variable speed driving motor
  • 7-inch industrial touch PLC control cabinet
  • Three-dimensional manual fine-tuning welding torch bracket
  • Separated argon pipeline for weld back protection
  • Foot switch, emergency stop button, length limit positioning baffles
Technical Parameters
Parameter Item ZF2000 Heavy Duty Straight Seam Welder
Max Effective Welding Length 2000mm
Applicable Plate Thickness 1mm - 6mm thick metal sheet
Workpiece Diameter Range Φ180mm - 800mm
Water Cooling Copper Pad Length 2000mm full-length integrated cooling
Control System PLC touch screen full automatic control
Welding Speed Stepless adjustable
Custom Power Supply 220V/380V, 50Hz/60Hz optional

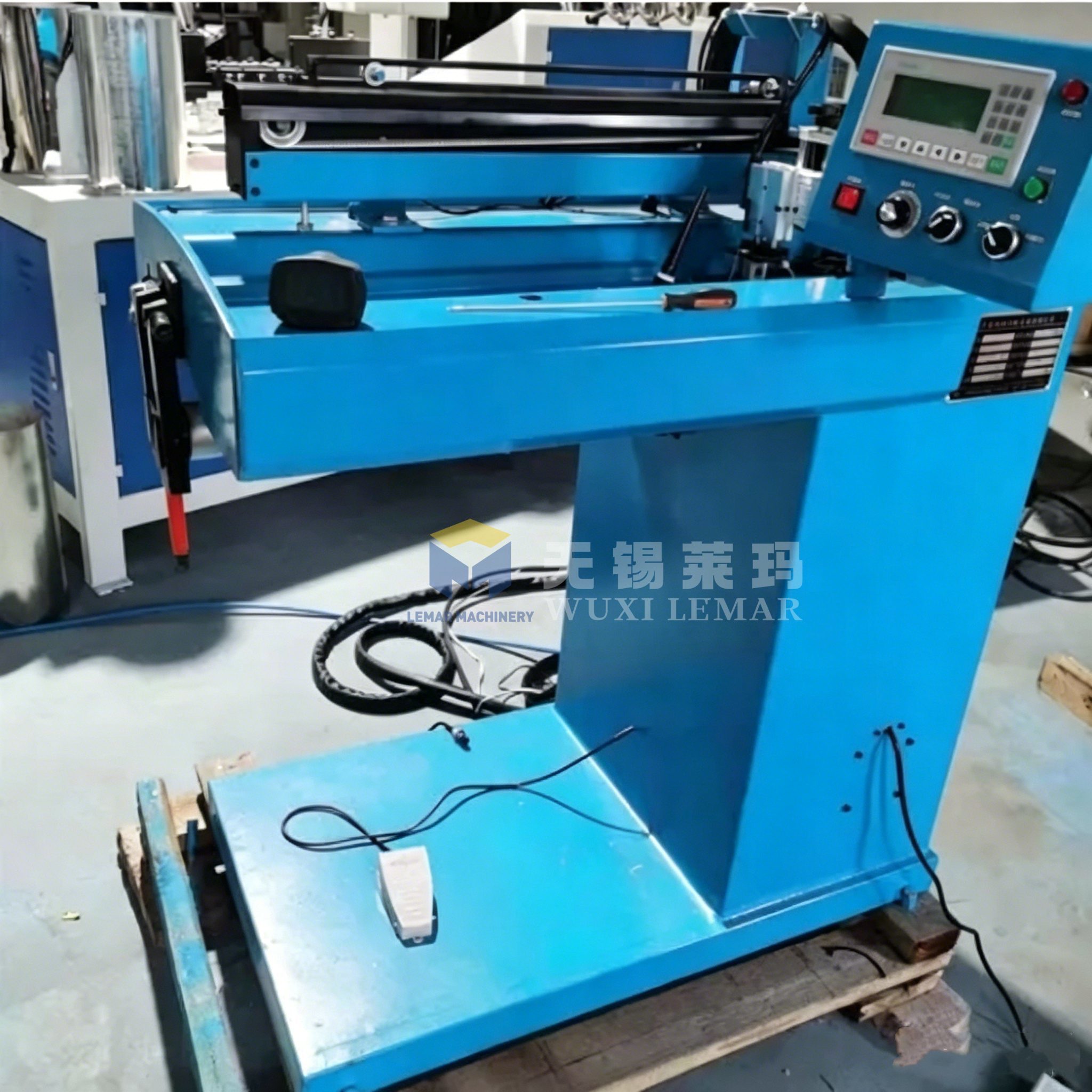

2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank 2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank
Key Advantages
2000mm full long welding stroke, suitable for long barrels and large vessels
Thickened heavy load cast beam, anti-shake during continuous heavy workload
Full-length 2000mm water cooling piano-key pressing, low workpiece deformation
7-inch touch PLC, store 50 groups of welding parameters for mass production
Stepless speed regulation + precision linear guide, uniform smooth weld bead
Process thick plate 1-6mm, workpiece diameter Φ180-800mm
3D adjustable torch stand, convenient alignment for thick plate butt joints
Low failure rate, durable structure for round-the-clock factory operation
2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank
Application Range
Suitable Workpieces

Long industrial cylinders, chemical holding tanks, boiler barrel segments, high-pressure vessels, oversized stainless steel barrels, waste water treatment tanks, wind energy component housings, heavy-duty air ducts, thick metal plate butt-joint components.

Processable Raw Materials

304 & 316 stainless steel, medium-thickness carbon steel, low-alloy structural steel, heavy gauge aluminum alloy sheets.

2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank 2000mm Longitudinal Seam Welding Machine for Pressure Vessel & Large Tank
Request Information

ZF2000 2000mm heavy duty longitudinal seam welder is professional equipment for large pressure vessel and thick tank production lines.

Send inquiry to get full datasheets, real welding test videos and FOB factory price. OEM & special customized configurations are available, we reply within 24 hours.

Frequently Asked Questions
What is the max welding length of ZF2000?
This machine supports full 2000mm effective welding stroke for long cylindrical workpieces.
What thickness plates can ZF2000 weld?
It works for 1mm to 6mm thick carbon steel, stainless steel and aluminum plates.
What workpiece diameter fits this welder?
Applicable diameter range: Φ180mm to Φ800mm.
Can this machine weld pressure vessels?
Yes, full water cooling and back argon protection guarantee weld quality for vessel NDT inspection.
Is the frame heavy duty enough for long time work?
Thickened cast steel beam avoids shaking, stable for 24-hour continuous production.
Can I save different welding parameter programs?
7-inch PLC touch screen can store up to 50 groups of parameters for different products.
