5 Ton Adjustable Welding Rotator, Bolt Adjustment Tank Turning Roller for Cylinder Welding

  • 1
  • 2
  • 3

In Stock : Yes

Supply Ability : 500 units/month

Voltage : 380V

Model Number : KTG-5

New Usage : Circular Seam Welding for Tank, Pipe, Vessel

Price : 500-1000USD

Rotaion Speed : 0.1-1rpm

Certification : CE, ISO9001

Product Name : 5ton Adjustable Welding Rotator

MOQ : 1

Delivery Time : 10-20 work days

Color : Customizated

Payment Terms : ,T/T,D/P,D/A,L/C

Model NO. : HGK-5

Brand Name : LEMAR

Welding Turning Rolls Type : \Adjustable

Place of Origin : WUXI

Packaging Details : 120.00cm * 74.00cm * 100.00cm

Contact Now

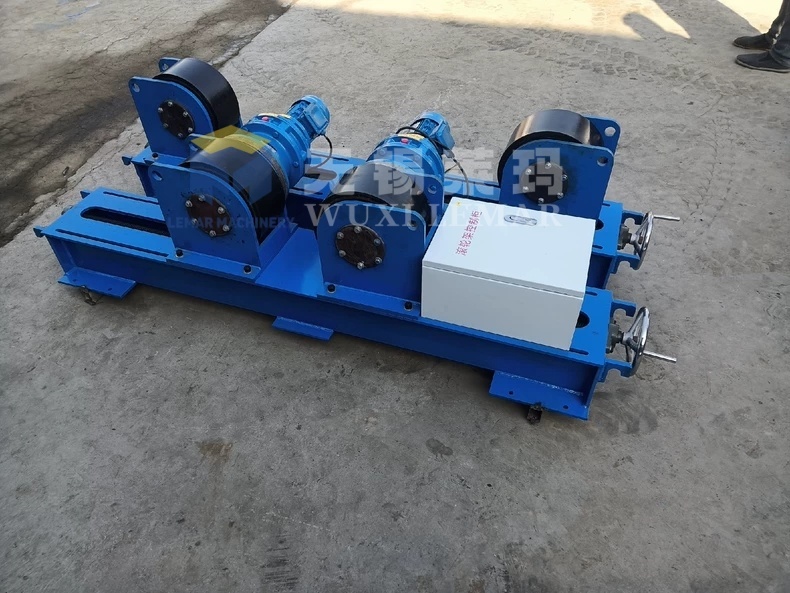

5 Ton Adjustable Welding Rotator
Bolt Adjustment Tank Turning Roller for Cylinder Welding
Product Overview
The 5-ton adjustable welding rotator is essential auxiliary equipment for circular workpiece circumferential welding. The center distance between driving roller and idler roller can be manually adjusted by bolts to adapt different cylinder diameters. Frequency conversion motor ensures stable rotating speed, low vibration and uniform rotation, effectively improving welding seam molding quality and cutting manual labor cost.
5 Ton Adjustable Welding Rotator, Bolt Adjustment Tank Turning Roller for Cylinder Welding5 Ton Adjustable Welding Rotator, Bolt Adjustment Tank Turning Roller for Cylinder Welding
Technical Parameters
Item Parameter
Rated Load 5 Ton
Adjustment Mode Bolt manual adjustment
Roller Material PU rubber roller
Applicable Workpiece Diameter Φ300mm-Φ2200mm
Rotation Speed 0.1-1 m/min stepless adjustment
Drive Mode One drive + one idler
Motor Power 1.5kW
Power Supply AC380V 50Hz (customizable 220V/415V 50/60Hz)
Control Mode Separate electrical control box
Application Tank, pipeline, pressure vessel, barrel
Warranty 12 months
Core Advantages
  • Bolt-type width adjustment, flexible adaptation to various cylinder outer diameters, convenient on-site adjustment
  • Polyurethane roller, wear-resistant, no scratch on workpiece surface, mute operation
  • VFD stepless speed regulation, stable rotation, avoid weld deflection caused by speed fluctuation
  • Thickened steel base frame, overall annealing treatment, strong load-bearing capacity, long service life
  • Independent control box with emergency stop button, simple operation for welders
  • Support customized low-temperature electric cabinet for Russia and northern cold areas
  • Complete export documents and fast delivery for standard model
  • 5 Ton Adjustable Welding Rotator, Bolt Adjustment Tank Turning Roller for Cylinder Welding5 Ton Adjustable Welding Rotator, Bolt Adjustment Tank Turning Roller for Cylinder Welding
Application Working Conditions
  • Works for carbon steel, stainless steel and alloy steel cylinders
  • Used for tanks, pressure vessels, pipes and chemical equipment
  • Single unit for short workpieces, multiple units for long barrels
  • Suitable for factory mass production and project processing
  • Matches auto welding machine to build automatic welding lines
Core Standard Configuration
  • Complete set includes active frame, passive frame and PU rollers
  • Brand electric parts guarantee stable operation
  • Forged structural parts resist deformation under load
  • Precision reducer achieves steady variable speed rotation
  • Whole machine meets international export manufacturing standards

5 Ton Adjustable Welding Rotator, Bolt Adjustment Tank Turning Roller for Cylinder Welding

Production & Project Cases
  • Products exported to Europe, Southeast Asia and Middle East
  • Every machine passes load and electric aging test before delivery
  • Mature mass production ensures stable quality and short lead time
  • Support non-standard customization for special working scenes
  • Long-term cooperation with vessel and metal processing factories worldwide

5 Ton Adjustable Welding Rotator, Bolt Adjustment Tank Turning Roller for Cylinder Welding
