D16 Industrial Welding Table with Quick Change Fixtures

Supply Ability : 500 units/month

Positioning Accuracy : ±0.05 mm

Model Number : D16

Layout : Five-sided hole design (Top + 4 side panels)

MOQ : 500-1500 USD

Delivery Time : 15-25 work days

Material Option : HT300 Grey Cast Iron/Q355 Steel

OEM / ODM : Available

Payment Terms : D/A,L/C,D/P,T/T

Flatness Tolerance : ≤0.1mm/1000mm

Price : 500-1500 USD

Surface Treatment : Gas Nitriding

Certification : CE

Standard Working Height : 620mm

Place of Origin : WUXI , CHINA

Available Sizes : 1000×800mm ~ 4000×2000mm, custom sizes supported

Brand Name : WUXI LEMAR

Hole Standard : D16 System, Φ16 mm locating holes, 50×50 mm grid spacing

Packaging Details : 4000*2000*200mm

Contact Now

D16 Industrial Welding Table with Quick Change Fixtures
D16 Industrial Welding Table with Quick Change Fixtures

Upgrade your fabrication efficiency with the D16 Industrial Welding Table with Quick Change Fixtures. Unlike conventional bolted welding platforms, this 3D flexible welding system comes complete with quick release fixture modules to eliminate time-consuming bolt tightening during product changeovers.

The dense D16 Φ16mm / 50×50mm grid offers abundant positioning points for compact and complex workpieces. Available in high-grade S355 steel or HT300 cast iron construction with gas nitriding finish, the welding table retains tight flatness and positioning accuracy.

Widely adopted in prototype workshops, batch production lines and robotic welding cells, it removes the need for expensive custom single-use jigs and improves overall workshop productivity.


D16 Industrial Welding Table with Quick Change Fixtures D16 Industrial Welding Table with Quick Change Fixtures
D16 Industrial Welding Table Full Size Chart
Table Size (L × W) Standard Height Support Legs Qty Max Uniform Load
1000 × 800 mm 620 mm 4 pcs 1600 kg
1200 × 800 mm 620 mm 4 pcs 1800 kg
1500 × 1000 mm 620 mm 4 pcs 2000 kg
2000 × 1000 mm 620 mm 6 pcs 2500 kg
2400 × 1200 mm 620 mm 6 pcs 3000 kg
3000 × 1500 mm 620 mm 8 pcs 3800 kg
4000 × 2000 mm 620 mm 8-10 pcs 5000 kg
Hole System Precision Standard
  • Positioning hole diameter: Φ16 H7 (16.065～16.149 mm)
  • Grid spacing: 50 mm × 50 mm, tolerance ±0.05 mm
  • Five-hole layout: D16 holes evenly distributed on the top surface and four side walls; the side walls typically have two rows of positioning holes
  • Flatness grade:
    • Standard industrial grade: ≤0.1 mm / 1000 mm
    • Robot precision welding grade: ≤0.05 mm / 1000 mm
  • Perpendicularity: Side and worktable surface ≤0.05 mm / 200 mm
  • Worktable markings: X/Y axis millimeter scale, grid markings, facilitating rapid layout without drawings
Product Advantages
D16 Industrial Welding Table with Quick Change Fixtures
  1. 50×50 fine mesh, providing ample room for fine-tuning of small parts, sheet metal, and pipes
  2. Quick-change fixtures significantly reduce changeover time for various product types
  3. Three-dimensional five-sided clamping, enabling multi-angle positioning of irregularly shaped workpieces
  4. Modular universal tooling, eliminating the need for continuous investment in customized fixtures
  5. The D16 modular welding station is compatible with small robot welding, R&D prototyping, and small-batch flexible production lines
  6. Nitrided table surface resists weld slag and is easy to clean

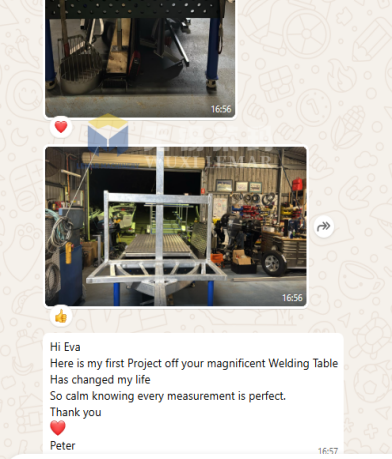

Customer Reviews
D16 Industrial Welding Table with Quick Change Fixtures D16 Industrial Welding Table with Quick Change Fixtures
FAQ
Q: What optional extras can I order?
A: Height adjustable feet, brake mobile casters, electric lifting bases, complete sets of quick change fixture kits, splicing connectors.
Q: Can you provide inspection certificates and technical drawings?
A: Yes. We can supply flatness test reports, material certificates and 2D/3D drawings for your project evaluation.
Q: What is your lead time?
A: Standard models normally 15-25 working days. Custom specifications will be confirmed separately according to production schedule.
Q: If I find dimension or quality non-conformity after receiving goods, how do you handle claims?
A: Please provide clear photos and video evidence within the agreed time frame. We will actively communicate solutions such as spare part supply or negotiation according to actual conditions, adhering to international trade practices.
Q: Can you recommend suitable container loading plans when I place a large order?
A: Our team can calculate loading quantity for 20GP / 40GP containers, optimize layout to maximize container space and lower unit sea freight cost for you.
Interested in our D16 Industrial Welding Table with Quick Change Fixtures?

Share your workshop layout, preferred material and dimension demands.

Our professional team will prepare a customized proposal for you without delay. Get in touch to receive your offer today.
