Precision D16 Welding Fixture Table With 16mm Holes

Looking for a flexible, high-precision workbench for small precision workpieces?

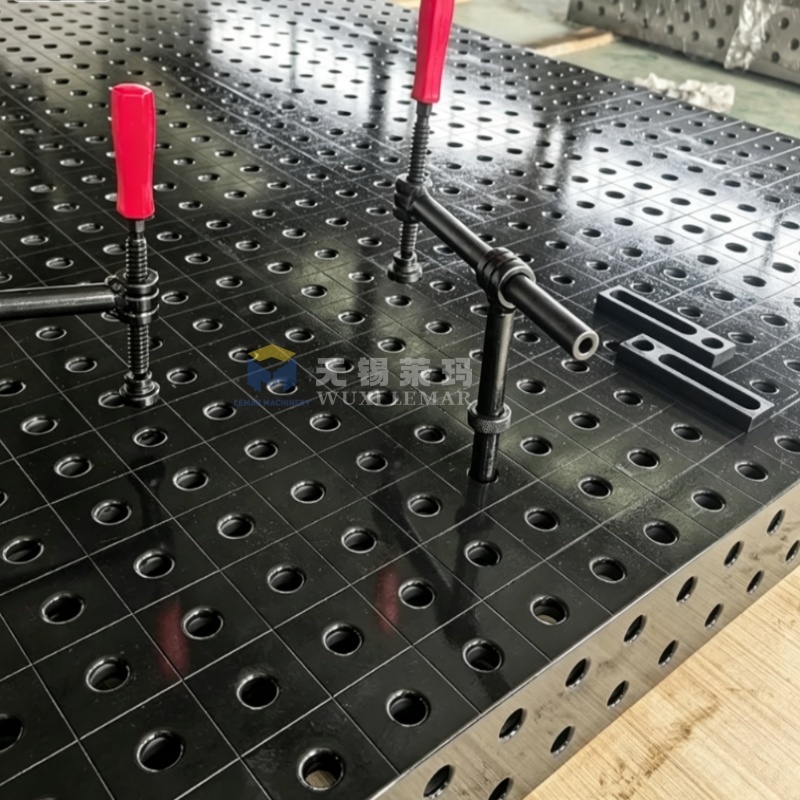

Our Precision D16 Welding Fixture Table With 16mm Holes is your ideal solution. Built with dense 50×50mm Φ16mm positioning holes and full five-sided 3D clamping structure, it supports multi-angle clamping without being limited to flat welding.

After integral stress relief and nitriding treatment, the tabletop resists welding spatter adhesion, abrasion and rust, maintaining long-term flatness accuracy. Cast iron and steel material options meet different budget and precision demands. All standard D16 clamps, positioning pins and supports are fully compatible, freely combined to fit dozens of workpieces without extra custom molds. Available with fixed, mobile and hydraulic lifting bases, perfectly compatible with manual welding and collaborative robot welding stations.

• Flatness: ≤0.1 mm/m²; minimal height variation across the large plate ensures uniform dimensions and prevents deformation during welding
• Hole positioning accuracy: ±0.05 mm; ensures high interchangeability of mass-produced parts and consistent dimensions across repeated welding operations
• Hole perpendicularity and vertical squareness: 0.05 mm/200 mm; eliminates cumulative angular errors in the tooling setup
• Metric millimeter scale engraved along the table edge; enables rapid workpiece positioning without the need for additional calipers

• Versatile and Multi-purpose: A single welding table handles various products; switching production requires only reconfiguring fixtures, reducing changeover time from hours to minutes

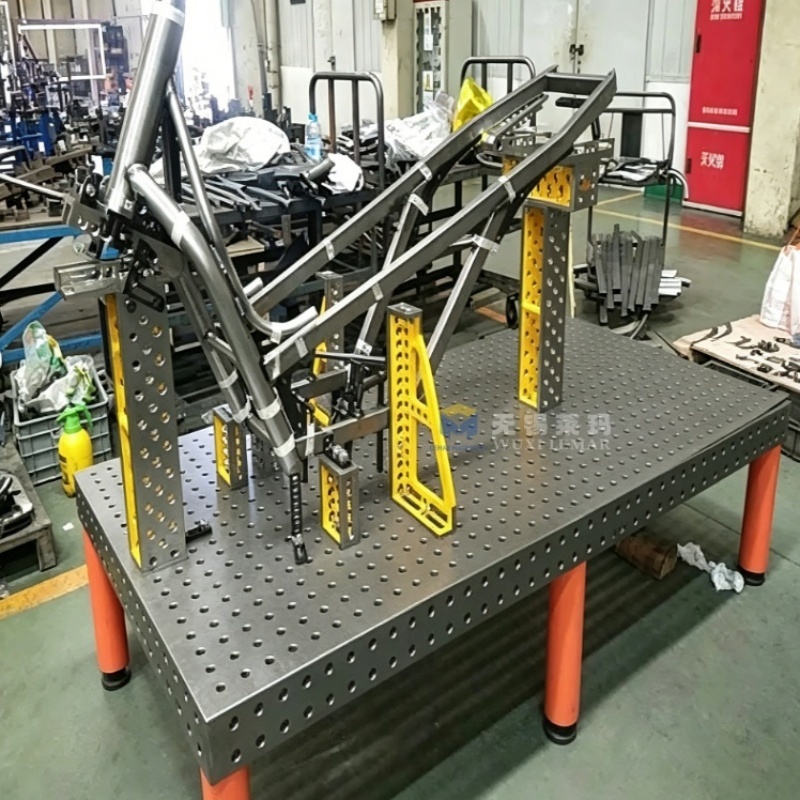

• 3D Welding Capabilities: Five-sided hole pattern enables clamping at any angle, overcoming limitations of traditional platforms restricted to flat-surface welding
• Ultra-high Repeatability: Positioning accuracy of ±0.05 mm ensures high dimensional consistency across batches, reducing rework and scrap rates
• Wear-resistant and Low-maintenance: Nitrided surface resists weld spatter adhesion, rust, and wear; flatness remains virtually unchanged over years of use
• Significant Cost Reduction: Eliminates high costs of manufacturing and storing specialized welding jigs, as fixtures can be reused repeatedly
• Automation-ready: Uniform dimensional accuracy allows direct integration with robotic arms and welding cells

Standard finished sizes cover 1000×800mm up to 4000×2000mm. Custom non-standard dimensions are supported on request, and multiple tables can be spliced seamlessly for large workstations.

Compatible with MIG/MAG, TIG argon welding, pulse welding and spot welding. Suitable for precision sheet metal, medical equipment frames, new energy brackets, automation equipment and lab prototype parts. Not recommended for super-heavy engineering vehicle frames (choose D28 series instead).

Yes. We supply low-interference thin D16 clamps and pneumatic clamping accessories for collaborative robots and six-axis robotic welding stations. Standard hole system supports offline programming directly.

We provide CE certificate, material spectrum test report, flatness inspection data, commercial invoice, packing list, fumigation certificate for wooden cases.
