D16 3D Flexible Welding System with Standard 16mm Fixture Components

Supply Ability : 500 units/month

Hole Diameter : 16mm

Model Number : D16

Warranty : 12 months for table body

MOQ : 1 PCS

Delivery Time : 15-25 work days

Flatness : ≤0.1mm/1000mm

Payment Terms : D/A,L/C,D/P,T/T

Grid Pitch : 50×50 mm

Surface Treatment : Nitriding

Price : 500-1500 USD

Structure : 5-sided 3D modular structure

Material Option : Q355 welded steel, HT300 cast iron

Working Temperature Range : -10℃ ~ 60℃

Brand Name : WUXI LEMAR

Standard Lock Bolt Size : D16 quick ball lock bolt

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200

Contact Now

D16 3D Flexible Welding System with Standard 16mm Fixture Components
D16 3D Flexible Welding System with Standard 16mm Fixture Components

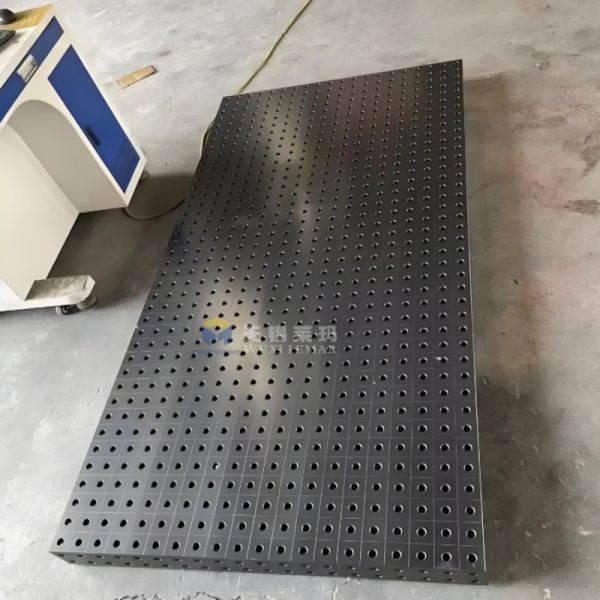

The D16 3D Flexible Welding Table with Standard 16mm Fixture Components is a modular precision fixturing solution built on a 50×50mm φ16mm hole grid. Designed for flexible 3-dimensional assembly and welding, this five-sided welding platform supports fixture installation on the top surface and four vertical sides.

Matched with complete interchangeable standard 16mm fixture components, it enables rapid reconfiguration to clamp diverse small and medium-sized workpieces, eliminating the need for costly custom jigs. Ideal for multi-variety, small-batch metal fabrication, robotic welding cells and prototype manufacturing.


D16 3D Flexible Welding System with Standard 16mm Fixture Components D16 3D Flexible Welding System with Standard 16mm Fixture Components

Technical Specifications
Item Parameters
Product Name D16 3D Flexible Welding System with Standard 16mm Fixture Components
Hole Diameter Φ16 mm
Grid Pitch 50 × 50 mm
Working Surface Flatness ≤0.1 mm / 1000 mm
Uniform Load Capacity 2 Ton / ㎡
Standard Available Sizes (mm) 1000×1000/1200×800/1500×1000/1200×1000/2000×1200/2400×1200/1500×3000mm

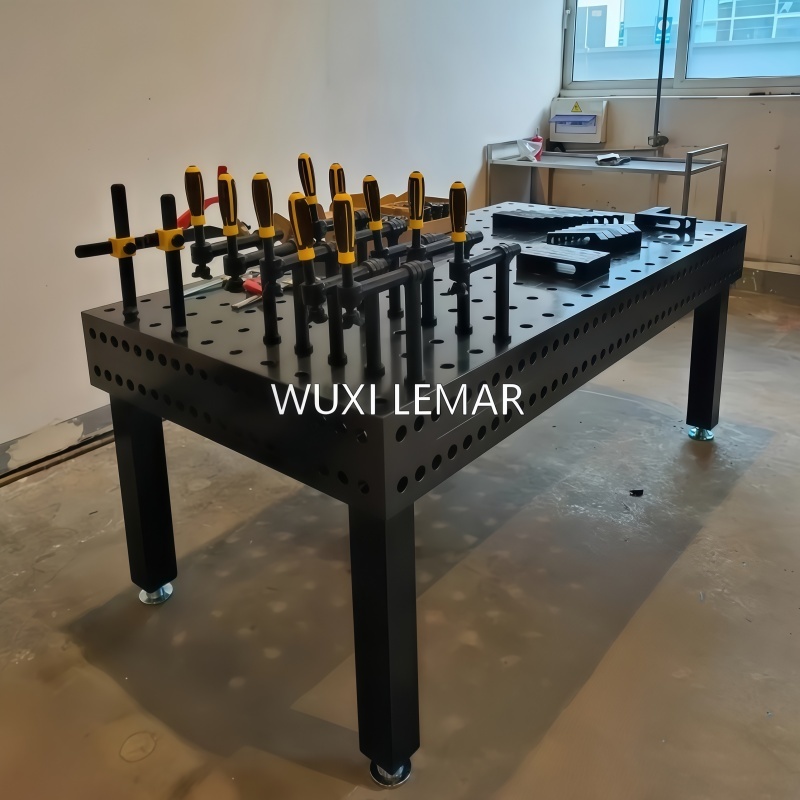

Standard 16mm Fixture Components
D16 3D Flexible Welding System with Standard 16mm Fixture Components D16 3D Flexible Welding System with Standard 16mm Fixture Components

All accessories adopt standard D16 welding table, fully interchangeable with international D16 systems:

  • Quick ball lock bolts (main fasteners)
  • Positioning squares, right-angle brackets & adjustable angle blocks
  • Flat stops, V-blocks, support blocks & extension spacers
  • Vertical & horizontal welding clamps, cantilever clamps
  • Connection blocks for multi-table expansion
  • Height adjustment pads & leveling supports
Platform Structure Details
  • Five-sided 3D structure: The top surface and four sides are all machined with D16 mesh holes for seamless clamping.
  • Bottom reinforcing rib structure: Finite element optimized design ensures stable bending performance under uniformly distributed loads.
  • Laser-engraved metric scale: Around the tabletop for easy on-site layout mapping.
  • Countersunk hole design: Protects locking pins and prevents impact damage; smooth inner walls ensure smooth clamp insertion and removal.

Two Material Options Available:

Q355 steel welding table: Lightweight and cost-effective, suitable for general precision welding applications.

HT300 cast iron table: Better shock absorption and less heat deformation, suitable for long-term continuous welding and robotic welding stations.

Maintenance Plan
  • Daily: Cleanup of welding slag and spatter; avoid placing hot workpieces directly on the worktable.
  • Weekly: Clean debris from positioning holes, inspect moving parts of fixtures, and apply anti-rust grease.
  • Monthly: Wipe the worktable and apply a thin layer of anti-rust oil; shorten the anti-rust cycle in humid environments.
  • Annual: For long-term high-precision batch production, re-measure the flatness of the welding worktable.

Maximize production flexibility and eliminate repeated investment in custom jigs with the D16 3D Flexible Welding System with Standard 16mm Fixture Components.
