Product Overview

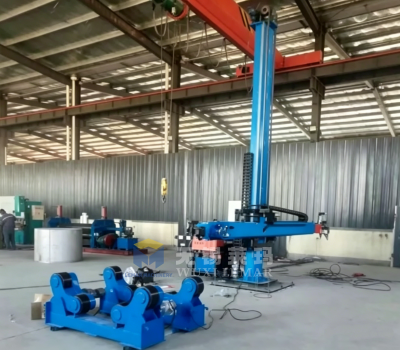

Our 10 Ton Tank Turning Rolls, also known as welding rotators, are designed to rotate cylindrical vessels for girth welding, assembly, and polishing operations. Each set includes one drive unit and one idler unit, providing even 10-ton load bearing capacity.
Featuring a self-aligning structure, these turning rolls automatically adapt to various tank diameters without manual roller adjustment. Equipped with VFD speed control and wear-resistant PU rollers, they deliver stable, slip-free rotation suitable for SAW, MIG, and TIG welding applications.
As standard auxiliary equipment for tank manufacturing facilities, these turning rolls significantly improve girth weld quality, reduce labor costs, and eliminate safety risks associated with manual tank handling.
Key Features

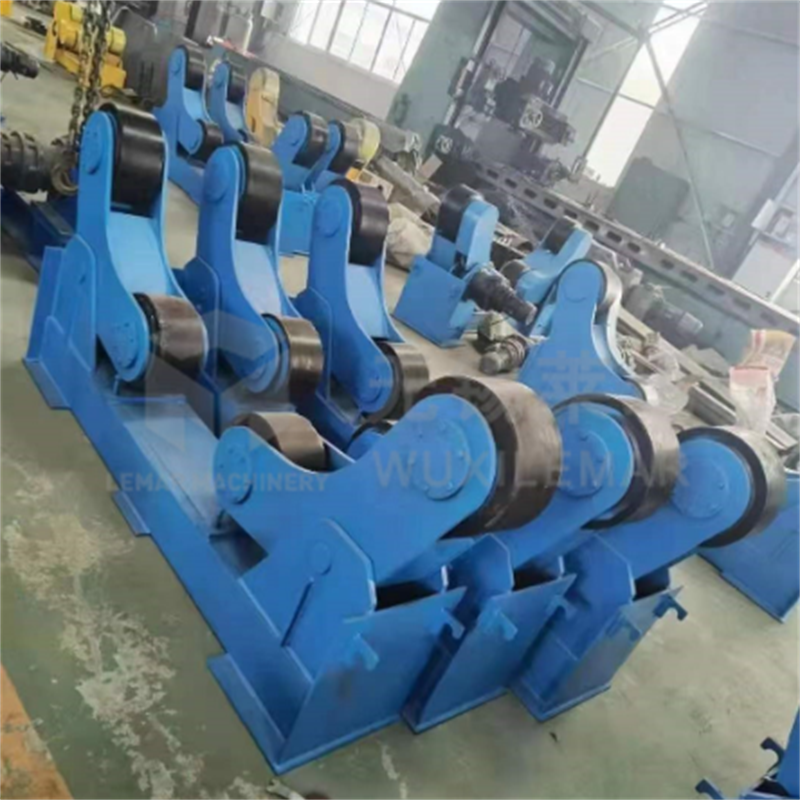

Self-Aligning Design
Automatically adjusts roller angles to accommodate tanks from 400-3200mm diameter range, eliminating manual calibration and reducing workshop setup time by 60% for mass production applications.
Stable Heavy Load Frame
Constructed with thickened annealed carbon steel base, providing anti-deformation performance under full 10-ton load capacity. Uniform bearing distribution prevents tank shell denting and distortion.
Scratch-Proof PU Rollers
Standard high-density PU rollers minimize vibration and noise while protecting carbon and stainless steel tank surfaces. Steel rollers available as optional for high-temperature welding applications.
VFD Stepless Speed Regulation
0.1-1rpm adjustable speed range with digital display enables smooth speed transitions for precision welding and polishing operations. Compatible with welding column boom manipulators for automated welding stations.
Safe & Convenient Control
- Separate control cabinet with handheld remote for forward/reverse/stop/speed adjustment
- Comprehensive overload, overcurrent and emergency stop protection systems
- Dual synchronous drive motors prevent tank slipping during operation
- IP54 dustproof and waterproof electrical cabinet suitable for demanding workshop environments
Frequently Asked Questions
What is a 10 ton tank turning roll used for?
It is professional auxiliary welding equipment used for rotating cylindrical tanks, boilers and pressure vessels to complete automatic girth welding, polishing and lining work.
Is the machine suitable for stainless steel tanks?
Yes. Equipped with anti-scratch PU rollers, it can perfectly protect stainless steel tank surfaces without damage.
Can it work with an automatic welding manipulator?
Yes. It supports synchronous linkage control to realize fully automatic tank girth welding.
Do you support customized specifications?
Customized diameter range, lifting system, anti-drift device and wireless remote control are available.
What is your factory testing standard?
All tank turning rolls pass strict 24-hour full-load running test before delivery.
