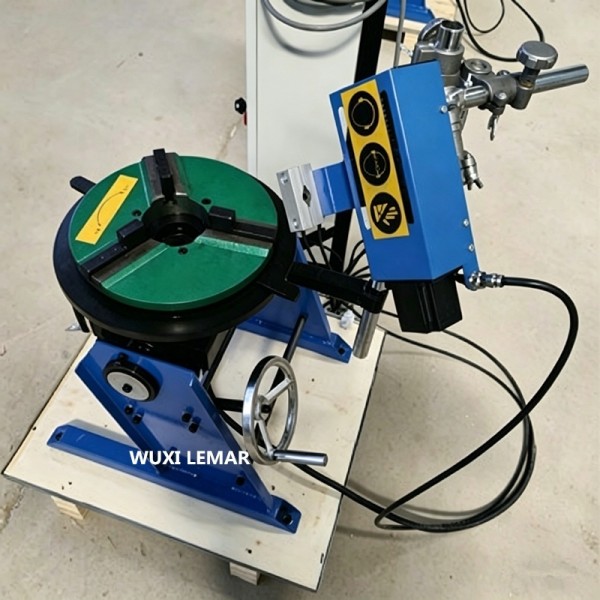

100kg Welding Positioner | Rotary Welding Turntable for Circular Welding
This 100kg welding positioner is a compact rotary worktable designed for automatic circumferential welding of small cylindrical, disc and elbow workpieces. With stable variable frequency speed regulation and reliable tilting function, it greatly improves welding consistency and workshop efficiency, widely used in hardware, pipe fitting, pressure vessel accessory and mechanical component fabrication.
Technical Specifications
| Item |
Technical Specification |
| Rated Load Capacity |
100kg |
| Turntable Diameter |
300mm |
| Rotation Speed |
0.2 ~ 2rpm, VFD stepless adjustable |
| Tilting Angle Range |
0° ~ 90°, electric automatic tilting |
| Rotation Motor Power |
0.37kW |
| Tilting Motor Power |
0.37kW |
| Standard Input Voltage |
220V Single Phase 50/60Hz |
| Optional Custom Voltage |
380V 3 Phase / 415V 3 Phase |
| Control Mode |

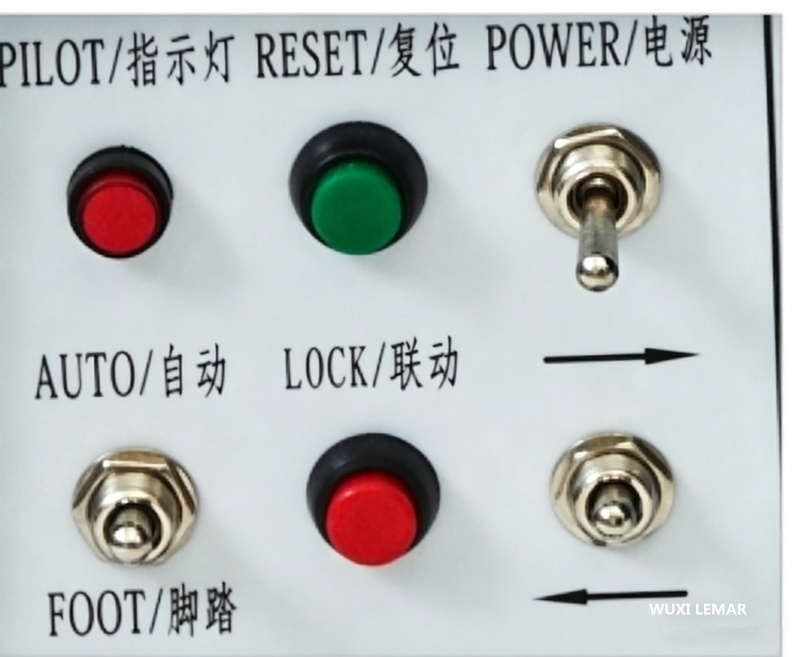

Independent control box; optional foot pedal / wireless remote control |
| Turntable Structure |

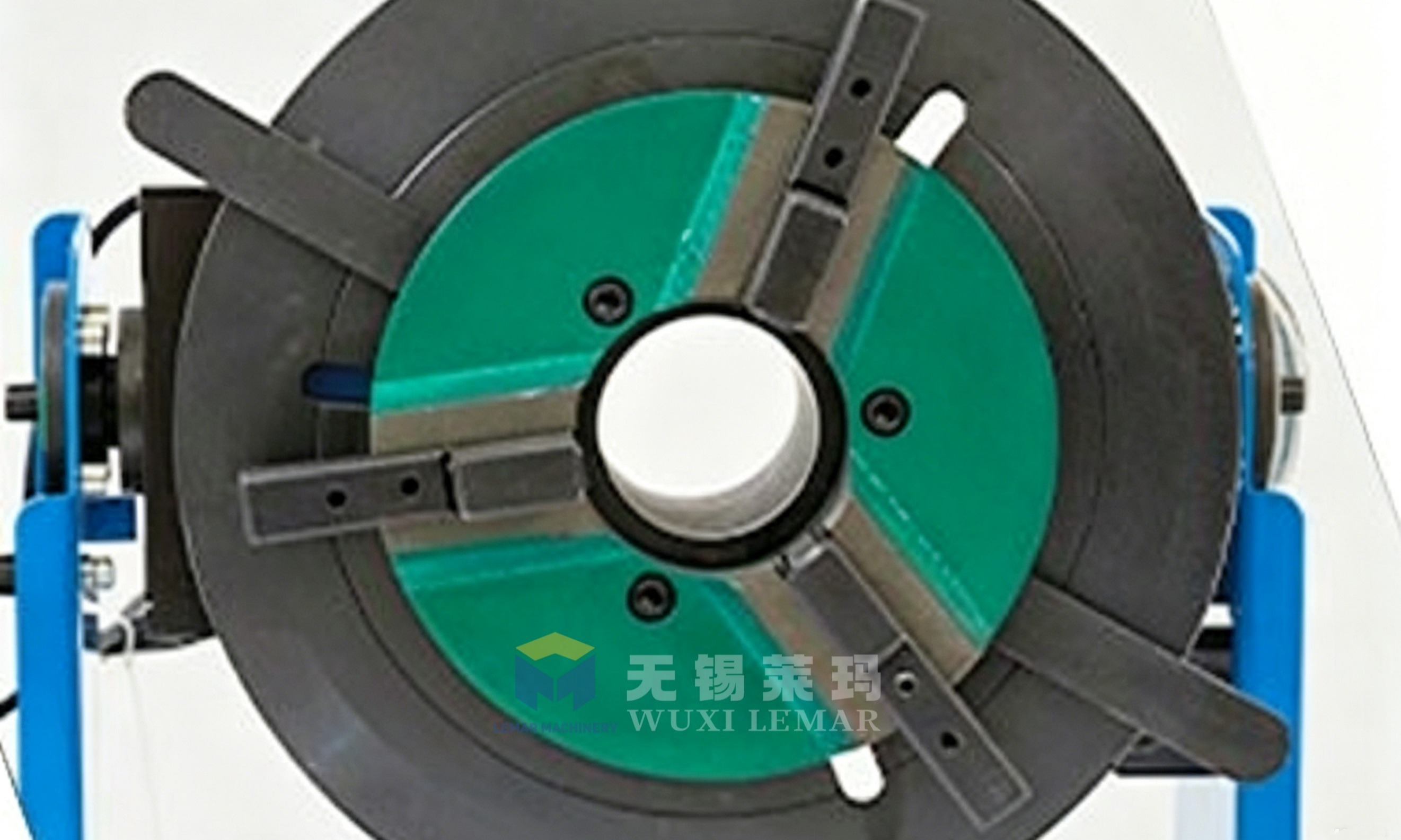

Cast steel turntable with standard fixture mounting holes |
| Applicable Workpiece |
Cylinder, disc, flange, elbow, rotary parts |
| Applicable Welding Process |
MIG / MAG / TIG / SAW / Plasma welding |
| Machine Color |
Standard industrial blue/grey (customizable) |
Core Advantages
Compact & High Precision: 100kg rated load, small floor space, suitable for small workshop assembly line use
Stepless VFD Speed Control: 0.2-2rpm smooth rotation, no jitter, ensuring perfect circular weld seam
0°-90° Electric Tilting: Free angle adjustment, avoid overhead welding, improve welding accessibility
Reinforced Steel Structure: Thickened cast steel turntable, strong bearing capacity, not easy to deform after long-term work
Multi-Voltage Customization: Support 220V/380V/415V to adapt to European, Southeast Asian, Middle Eastern and Australian industrial standards
Easy Automatic Matching: Perfectly cooperate with automatic welding machines to realize semi-automatic and full-automatic circular welding
Complete Certification: CE certificate, test report and full English technical documents support customs clearance
Application Scope
Suitable for circular welding of carbon steel, stainless steel and alloy steel small workpieces:
- Pipe fittings, flanges, elbows, pipe connectors
- Small cylindrical shells, miniature tank and pressure vessel accessories
- Hydraulic parts, mechanical accessories, engine components
- Hardware structural parts, stainless steel decorative parts
Why Choose Our 100kg Welding Positioner
- Factory direct supply, professional welding auxiliary machine manufacturer, stable quality and competitive price
- Strict quality inspection. Each unit will pass rotation, tilting and load test before shipment
- Good compatibility, can match all brands of automatic welding equipment
- Support global voltage customization for Australia, Middle East, Europe and Southeast Asia
- Complete after-sales service: English manual, installation guidance, lifelong technical support and spare parts supply
Operation Principle
Fix the cylindrical, disc or elbow workpiece on the turntable through fixture or chuck. The frequency conversion motor drives the turntable to rotate at a constant and adjustable speed. The welding torch remains stationary while the workpiece rotates evenly, realizing continuous and uniform circumferential welding. The electric tilting system adjusts the workpiece angle freely, enabling welders to operate at the best visual and working position, greatly improving welding efficiency and finished product qualification rate.
Frequently Asked Questions
Q1: Can you customize 415V voltage for Australian customers?
A: Yes, we provide 220V/380V/415V & 50/60Hz customization.
Q2: Can the machine run continuously for long hours?
A: Yes, industrial grade design, supporting 24-hour batch production.
Q3: Does standard unit include chuck?
A: Standard configuration includes main machine and control box. Chuck and foot pedal are optional parts.
Q4: What documents can you offer for customs clearance?
A: CE certificate, factory test report, English operation manual, packing list and commercial invoice.
