3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable

Product Categories
Wuxi Lemar Machinery Equipments Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable

Supply Ability : 500 units/month

Applicable Equipment : Welding Positioner, Rotary Welding Turntable

Model Number : 3 Jaw-4 Jaw Welding Chuck

Model Type : Self-centering 3-Jaw / Independent 4-Jaw

MOQ : 1

Delivery Time : 10-20 work days

Clamping Mode : Synchronous Self-centering / Single Jaw Independent Adjustment

Applicable Workpiece : Round Pipe, Cylinder, Square Tube, Irregular Parts

Payment Terms : L/C,D/A,D/P,T/T

Installation Method : Standard Flange Mounting

Price : 500-1000USD

Rotation Feature : 360° Synchronous Smooth Rotation

Certification : CE

Material : High-strength Cast Steel

Place of Origin : WUXI

Jaw Treatment : High-frequency Quenching Hardening

Packaging Details : 5.00cm * 5.00cm * 6.00cm

Brand Name : LEMAR

Product Name : 3-Jaw & 4-Jaw Welding Positioner Chuck

Contact Now

3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable
Product Overview

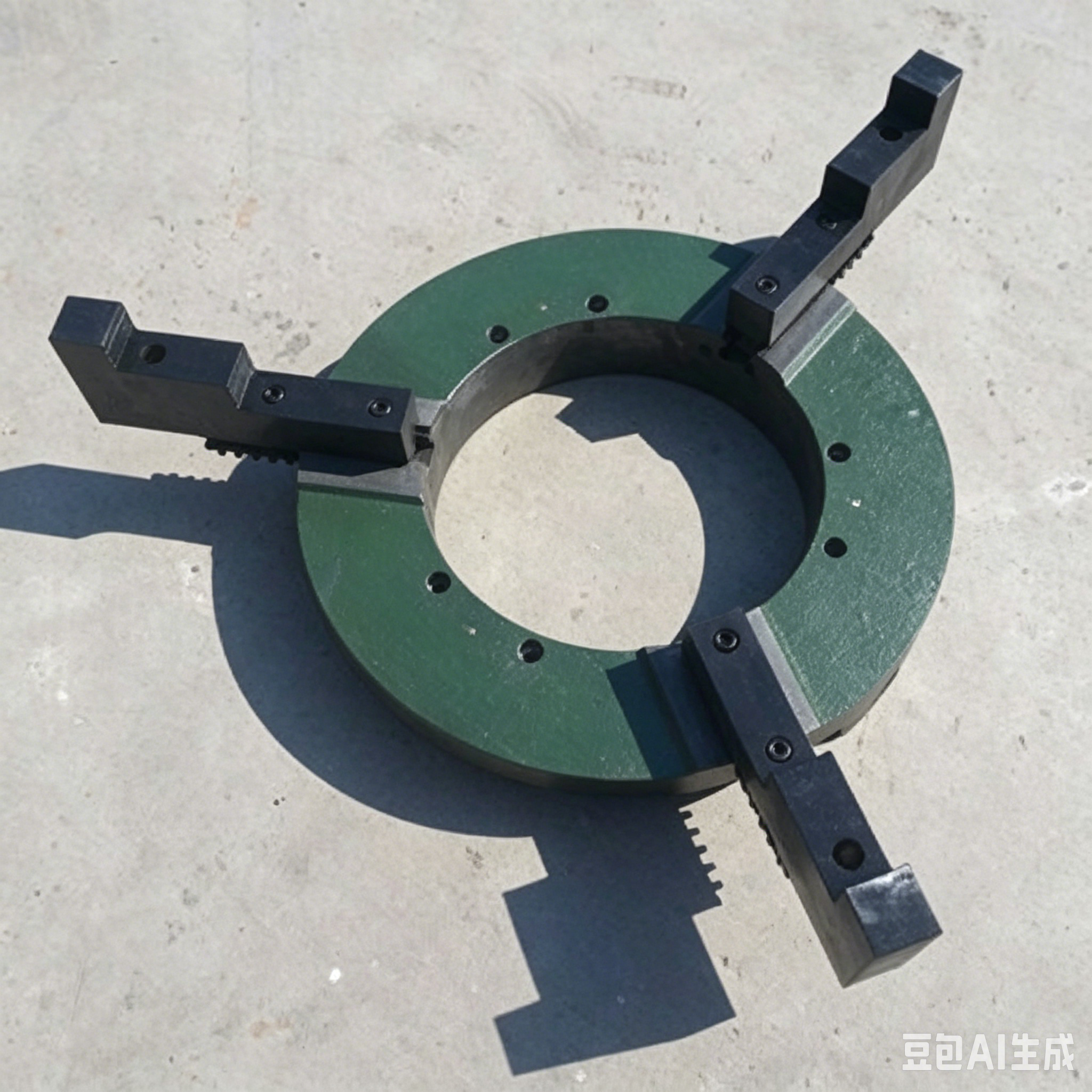

3-Jaw and 4-jaw chucks are dedicated fixtures for welding positioners. The 3-jaw self-centering model delivers fast clamping for round pipes and cylinders. The 4-jaw independent-adjust type fits square, rectangular and eccentric irregular workpieces. Both realize 360° synchronous rotation with positioner turntable, providing steady non-slip clamping and high precision for circumferential welding.
3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable
Main Advantages
  • Dual-type for broad usage - Two styles cover round, square and irregular workpieces, solving most clamping requirements for pipe and cylinder welding.
  • Precise and firm clamping - High-frequency quenched jaws offer high hardness and friction to stop shake and slip during rotary welding for consistent weld quality.
  • High rigidity & long service life - Stress-relieved cast steel body resists deformation and wear, ideal for continuous heavy-duty industrial welding.
  • Quick installation & simple operation - Standard flange mounting fits most positioners. Manual adjustment is user-friendly with no complicated training.
  • Rich custom options - Support large bore, special flange, extended jaws and soft protective jaws for thin-wall, stainless steel and special-shape workpieces.
Technical Parameters
Item Specification
Product Name 3-Jaw & 4-Jaw Welding Positioner Chuck
Structure Type Self-centering 3-Jaw / Independent 4-Jaw
Main Material High-strength Cast Steel
Jaw Hardness HRC55+ High-frequency Quenching
Rotation Performance 360° Synchronous Smooth Rotation
Installation Type Standard Flange Fixed Mounting
Applicable Workpiece Round, Square, Irregular Parts
Operation Mode Manual Adjustment
Customization Bore, Flange, Jaw Size Customizable
3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable
Application Scope
  • Round Pipe & Cylinder Welding - 3-jaw chuck is widely used for stainless steel pipes, carbon steel pipes and cylindrical tank shell clamping and circumferential welding.
  • Square & Special-shaped Workpiece Welding - 4-jaw independent chuck perfectly clamps square tubes, rectangular frames and eccentric irregular workpieces that 3-jaw chucks cannot fix.
  • Tank & Nozzle Welding - Suitable for tank nozzle, pipe fitting and end face welding, improving welding tightness and appearance quality.
  • Mechanical Hardware Processing - Used for batch clamping and welding of cylindrical and special-shaped mechanical accessories and hydraulic parts.

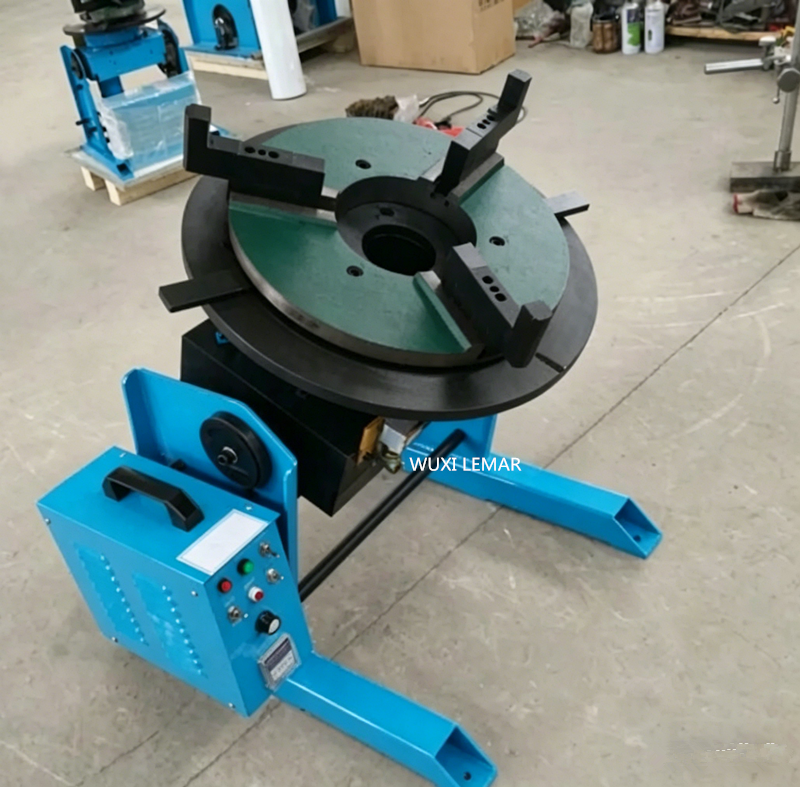

  • Automatic Welding Line Matching - Perfectly matched with welding positioners to form automatic rotary welding system, improving production efficiency and automation level.

3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable

Precautions
  • Reasonable Model Selection - Choose 3-jaw chuck for regular round workpieces for fast centering; choose 4-jaw chuck for square and irregular workpieces to ensure clamping stability.
  • Forbid Overload Clamping - Do not clamp workpieces beyond the rated clamping range. Overload will cause jaw deformation and accuracy loss.
  • Uniform Clamping Adjustment - For 4-jaw chuck, adjust four jaws evenly to avoid eccentric clamping and rotary vibration.
  • Operation Safety Rules - Do not adjust jaws or touch rotating workpiece during machine operation. Stop equipment completely before adjustment.
  • Welding Spatter Prevention - Regularly clean welding spatter on gear and jaw gaps to avoid jamming and transmission failure.
After-sales Service
  • 12 Months Full Machine Warranty - Free repair and replacement for quality problems caused by factory production, excluding wearing parts and man-made damage.
  • Lifelong Free Technical Support - Provide long-term technical consultation, model selection guidance and process matching service.
  • 24-hour Online After-sales - Professional technical team provides remote installation, debugging and fault solving services all day.
  • Original Spare Parts Supply - Long-term supply of original jaws, wrench and wearing parts at factory price.
  • Customized Service Support - Support non-standard size, special clamping range and special structure customization.

3 Jaw 4 Jaw Welding Chuck for Welding Positioner Turntable

Frequently Asked Questions
Q1: What is the difference between 3-jaw and 4-jaw welding chuck?
A: 3-jaw is synchronous self-centering type, fast positioning for round and symmetrical workpieces. 4-jaw is single-jaw independent adjustment type, suitable for square, eccentric and irregular workpieces.
Q2: Can 4-jaw chuck clamp round pipes?
A: Yes, it can clamp round workpieces, but manual fine-tuning of each jaw is required to ensure concentricity.
Q3: Will the hard jaws scratch stainless steel workpieces?
A: Standard hard jaws are for ordinary carbon steel. We provide optional soft protective jaws to protect thin-wall and stainless steel surfaces.
Q4: Is the chuck compatible with all brands of positioners?
A: Yes. We can customize flange size and mounting hole spacing to match most mainstream welding positioners.
Q5: Does the chuck support 360° synchronous rotation?
A: All models support full 360° smooth synchronous rotation with positioner turntable without jamming.
Q6: Can you customize large bore and special size?
A: Custom service is available. We support large bore, ultra-thin body, extended jaws and non-standard installation size customization.
