10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank

Name: 10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank
Brand: LEMAR
Price: 500 USD

China 10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank wholesale

Model Number : ZTG-10

Structure Type : Self-Aligning Type

Certification : CE

Applicable Workpiece Diameter : 150-2400 mm

MOQ : 1

Delivery Time : 10-20 work days

Speed Control : VFD Stepless

Noise Level : ≤72db

Payment Terms : T/T,D/P,D/A,L/C

Workpiece Diameter Range : 320-2800mm

Price : 500-1000USD

Warranty Period : 1 Year

Supply Ability : 500 units/month

Driving Form : Dual Motor Drive

Place of Origin : WUXI

Application : Tank Welding, Pressure Vessel, Pipe Welding

Packaging Details : 220.00cm * 130.00cm * 120.00cm

Brand Name : LEMAR

Rated Load : 10T

Contact Now

10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank

Brief Introduction

Automatic Centering Design: Self-aligning structure with rollers that swing automatically to adapt to different tank diameters without manual adjustment.
Stable Rotary Support: Complete set includes driving frame and idler frame for steady rotation during tank girth welding, polishing, and surface finishing.
Improve Workshop Efficiency: Consistent rotary speed reduces welding defects, lowers labor intensity, and enables operation with automatic welding equipment.
Wide Application Range: Suitable for various cylindrical workpieces in tank manufacturing, environmental protection, and pressure vessel industries.

10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank

Core Advantages

Auto-centering Mechanism: No manual adjustment needed when switching between tanks of various sizes, significantly saving setup time.
Smooth Low-vibration Operation: Dual-motor synchronous driving system ensures stable rotation and prevents tank slipping and shifting.
Surface Protection Design: Standard PU rollers avoid scratches on stainless steel tank shells during rotary processing.
Precise Speed Control: VFD stepless speed system supports adjustable rotary speed to match diverse welding processes.

Technical Parameters

Item	Specification
Model	ZTG-10 Storage Tank Turning Roll
Rated Load	10 Ton
Workpiece Diameter	300mm - 3000mm
Standard Roller Material	PU Anti-scratch Roller, steel roller optional
Driving Mode	Dual Motor Synchronous Drive
Control System	VFD Stepless Speed Regulation
Applicable Work	Storage tank, chemical tank, pressure vessel girth welding
Power Supply	380V standard, 400V/415V/480V customizable

10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank

After-sales Service

Complete Export Documents: English operation manuals, wiring drawings, and CE certification provided with goods.
Long-term Technical Guidance: Free professional consultation for workshop layout and equipment matching schemes.
Stable Spare Parts Supply: Original spare parts available at factory price to minimize production downtime.
Online Fault Support: Remote guidance for installation, commissioning, and daily maintenance.

10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank

Working Principle

Complete Equipment Composition: One driving unit plus one idler unit jointly support cylindrical storage tank workpieces.
Self-adjust Roller Angle: Mechanical swing structure adjusts roller supporting angle automatically according to tank outer diameter.
Constant Speed Rotation: Frequency converter controls motor speed to maintain uniform linear speed during continuous girth welding.
Rotary Welding Mode: Workpiece rotates steadily on turning rolls instead of moving welding torch for uniform circumferential welds.

10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank

Frequently Asked Questions

Q1: Does one set contain driving and idler frames together?

A1: Yes. A complete standard set consists of one driving unit and one idler unit.

Q2: Can this machine run continuously for daily mass tank production?

A2: Yes. Designed for long-time continuous operation under rated load for tank workshops.

Q3: Can we change roller material from PU to steel?

A3: Sure. We offer PU rollers as standard, and solid steel rollers as optional choice.

Q4: Is it possible to adjust power voltage for European market?

A4: Custom voltage service is supported to match local industrial power supply standards.

Q5: What is the warranty period for this storage tank turning roll?

A5: We provide 12-month warranty for the whole machine excluding consumable parts.

Product Tags:

10 ton welding rotator for stainless steel

self-aligning storage tank turning rolls

VFD welding rotator with warranty

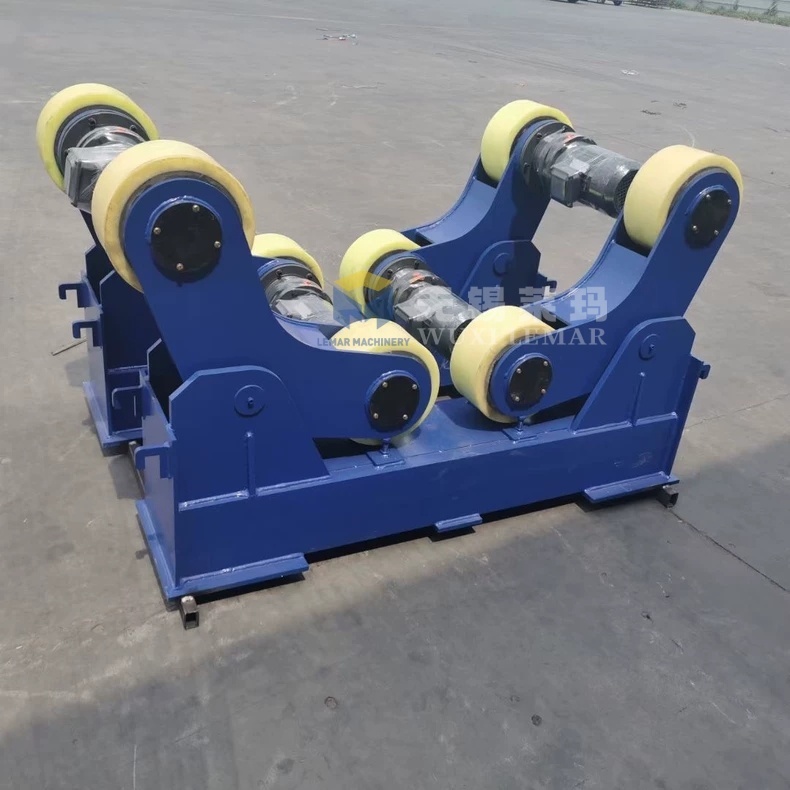

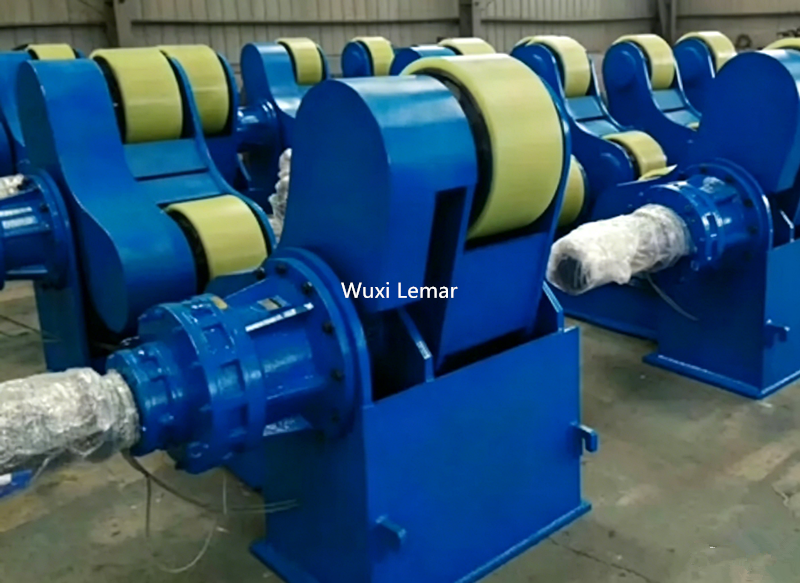

10 Ton Self Aligning Storage Tank Turning Rolls VFD Welding Rotator for Stainless Steel Tank Images
