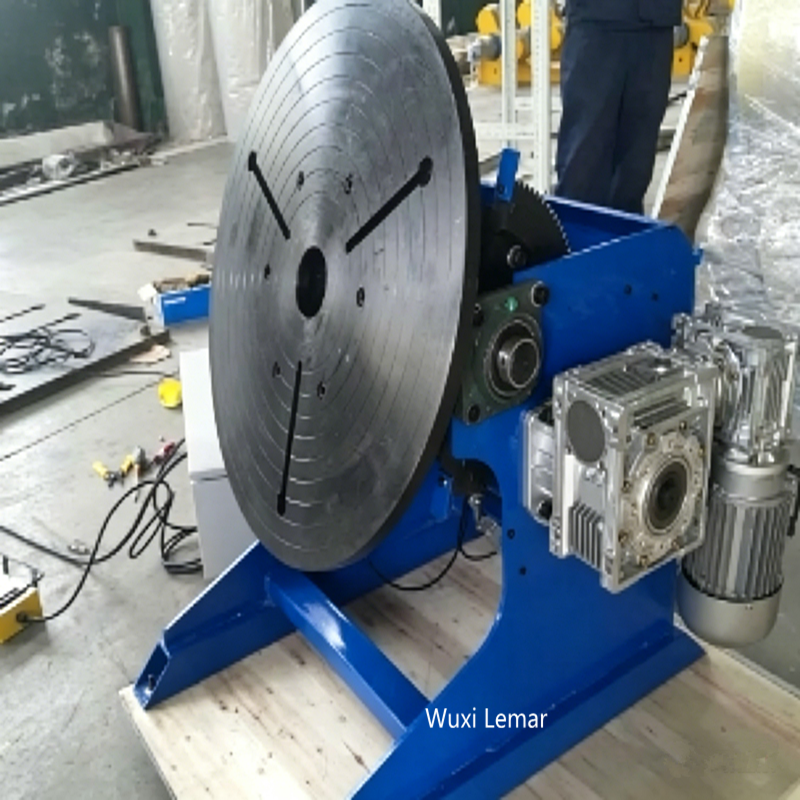

1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding

The 1-ton welding positioner is compact automatic rotary welding equipment for small-size workpieces. It can rotate and tilt workpieces, keeping welding seams at ideal flat position. This equipment greatly improves welding quality and working efficiency, and is widely used for small cylinder, pipe, nozzle and shell circumferential welding. It can match 3-jaw /4-jaw welding chuck for stable workpiece clamping.

Workpiece is fixed on the turntable flange. Driven by motor and reducer, the table realizes 360° rotation and 0-120° tilting. Operators adjust rotating speed via control box or foot pedal. Workpiece turns automatically to place weld seam in down-hand welding position, reducing welding difficulty and manual labor.

• Compact 1-ton load capacity: Light-duty structure for 1000kg workpiece, occupies small workshop space, easy to install and move.
• Rotating & tilting function: Realize multi-angle adjustment, keep weld seam in optimal welding position for nice weld bead.
• Flexible speed regulation: Stepless speed adjustment, adapt different pipe and cylinder welding requirements. Foot pedal for convenient on-site operation.

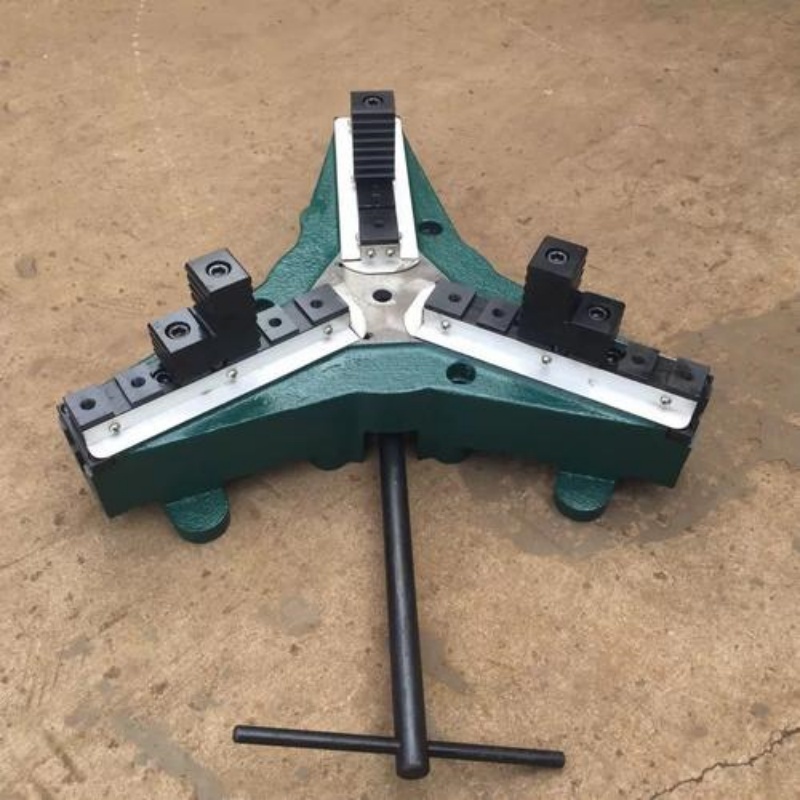

• Reserved chuck mounting flange: Directly fit 3-jaw or 4-jaw welding chuck for clamping round, square and irregular parts.
• Customizable configuration: Support different input voltage, modified flange size and special fixture according to your demands.

• Stable reducer drive, smooth running, low vibration during rotation.
• PLC control box together with foot pedal, simple operation for ordinary workers.
• Solid steel frame structure, good rigidity, long-time continuous working available.
• Reserved standard flange interface, convenient to install external welding chuck.
• Safe limit protection for tilting movement to avoid over-tilting risk.

• Small cylinder & barrel welding: Circumferential seam welding for small-size metal cylinders and storage shells.
• Pipe and nozzle welding: Pipe fitting, nozzle and flange circumferential welding.
• Mechanical part welding: Rotary welding for small-sized mechanical components.
• Stainless steel workpiece processing: Fit for stainless steel shell and vessel welding.
• Match with welding chuck: Work together with 3-jaw /4-jaw chuck to complete clamping-rotary welding workflow.

Welcome to Inquiry: Please tell us your workpiece weight, dimension and local voltage. We can offer suitable solution and competitive price.
