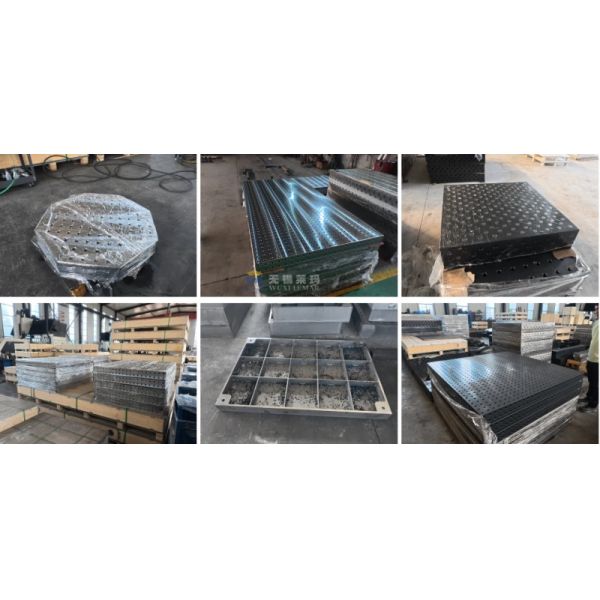

High Strength D16 Cast Iron 3D Welding Table System
Technical Specifications
| Item |
Specification |
| Table Material |
HT300 Grey Cast Iron |
| Hole Diameter |
Φ16 mm (H7 tolerance) |
| Grid Pitch |
50 × 50 mm |
| Hole-position Tolerance |
±0.05 mm |
| Machined Surfaces |
5-sided (Top + Four Side Faces) |
| Flatness |
≤0.1 mm / 1000 mm |
| Perpendicularity (Top to Side) |
≤0.1 mm / 200 mm |
| Heat Treatment |
Complete stress-relief annealing |
| Surface Option |
Standard CNC milled / Nitrided (HV550-900, nitriding layer: 0.25-0.4 mm) |
| Matching Bolt |
M12 |
| Static Load Capacity |
2 ton (custom reinforced up to 3-5 ton available) |
| Available Standard Table Sizes (Length × Width) |
1000×1000 mm
1200×1000 mm
1500×1000 mm
1500×1500 mm
2000×1000 mm
2400×1200 mm
Custom dimensions upon request |
Key Production Process Features
- Resin sand casting process to eliminate defects such as blowholes and sand inclusions
- Stress-relief aging treatment for the cast iron welding table to prevent thermal warping or deformation during subsequent welding operations
- CNC five-sided milling for all working surfaces and hole arrays
- Optional nitriding treatment: enhances surface hardness, provides resistance against weld spatter and mechanical impacts/scratches, and significantly extends service life
Applicable Industries and Scenarios
- Sheet metal welding, small components for construction machinery, machine frames, and frames for new energy equipment
- Robotic automated welding workstations
- Custom-engineered equipment, steel hardware structures, and medical device frames
- Workshop for multi-variety, small-batch production
FAQ
Q: How should I lift and handle the heavy cast-iron welding table safely?
A: Always lift via the dedicated threaded lifting holes pre-machined on the table body. Never sling ropes through grid holes or the table edge. Improper lifting will twist the casting and ruin geometric accuracy. All lifting guidelines are marked in our product documentation.
Q: What is included in the measurement protocol document?
A: The measurement protocol records actual test data including flatness, perpendicularity, hole-position tolerance, ambient testing temperature, and material batch information. It can be provided together with goods for quality verification, especially for large-volume industrial buyers.
Q: Can I get samples or visit your factory?
A: We do not supply single-piece table samples due to heavy weight and high production cost. Factory visits are warmly welcomed. You are welcome to inspect production processes, casting quality and finished-product accuracy on-site.
Q: What is your warranty policy?
A: We offer warranty against manufacturing defects such as casting flaws and machining deviations. Warranty does not cover damage caused by improper installation, impact, arc burning, wrong lifting or normal wear-and-tear of fixture accessories.
Q: Can you make non-standard sizes for special workshop layout?
A: Yes. Besides standard dimensions, custom length, width and reinforced-load versions are available. Please share your drawing or technical requirements for custom quotation and lead-time confirmation.
Looking for the suitable configuration of the High Strength D16 Cast Iron 3D Welding Table System for your workshop? Send us your workpiece size, load requirement and whether you need nitriding treatment or full fixture sets. Our engineering team will reply with detailed quotation and technical suggestion within 24 hours.
